Hydr.agreg. protipr.reg./říd.jedn./držák for BMW 3 Series E36 318i (1999)

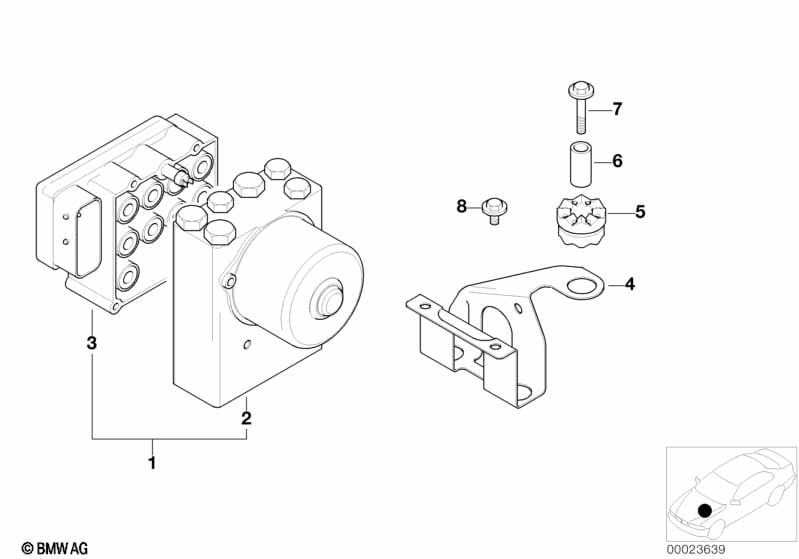

This Hydr.agreg. protipr.reg./říd.jedn./držák technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydr. agregát protiprokluzová regulace | 1 | 03/1998 | 34516756287 | $1906.77 | Shop at ECS Tuning | ||||
| 02 | Hydr. agregát protiprokluzová regulace | 1 | 03/1998 | 34516756287 | $1906.77 | Shop at ECS Tuning | ||||
| 03 | Opr.sada řídicí jedn. protipr. regulace | 1 | 03/1998 | 34516756289 | $708.73 | Shop at ECS Tuning | ||||
| 04 | Držák hydraulický agregát | 1 | 03/1998 | 34511165048 | Shop at ECS Tuning | |||||
| 05 | Pryžové ložisko | 3 | 03/1998 | 34511164894 | $1.83 | Shop at ECS Tuning | ||||
| 06 | Distanční pouzdro | ZNS3 | 1 | 03/1998 | 34506781284 | $8.16 | Shop at ECS Tuning | |||
| 07 | Šestihranný šroub s podložkou | M6X35 ZNS3 | 1 | 03/1998 | 07146971298 | $0.82 | Shop at ECS Tuning | |||
| 08 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 3 | 03/1998 | 07119904517 | $0.36 | Shop at ECS Tuning |
