Brzdové potrubí zadní for BMW MINI Clubman F54 One

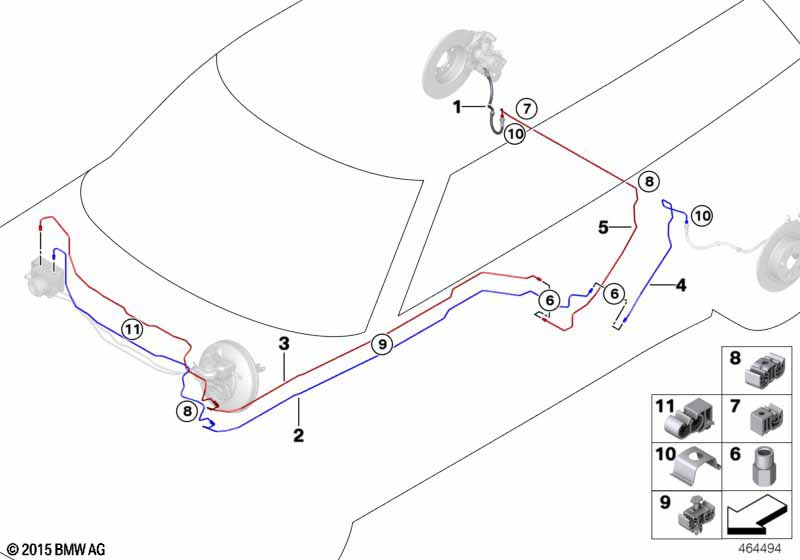

This Brzdové potrubí zadní technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brzdová hadice zadní | 2 | 34306798466 | Shop at ECS Tuning | ||||||
| 02 | Potrubí hydraulický agregát DSC | M10-M10 | 1 | 10/2017 | 34306856615 | Shop at ECS Tuning | ||||
| 02 | Potrubí hydraulický agregát DSC | M10-M10 | 1 | 10/2017 | 34306878917 | Shop at ECS Tuning | ||||
| 03 | Potrubí hydraulický agregát DSC | M12-M10 | 1 | 10/2017 | 34306856617 | Shop at ECS Tuning | ||||
| 03 | Potrubí hydraulický agregát DSC | M12-M10 | 1 | 10/2017 | 34306878916 | Shop at ECS Tuning | ||||
| 04 | Trubkové vedení propojovací kus | M10-M10 | 1 | 10/2017 | 34306856609 | Shop at ECS Tuning | ||||
| 04 | Trubkové vedení propojovací kus | M10-M10 | 1 | 10/2017 | 34306878929 | Shop at ECS Tuning | ||||
| 05 | Trubkové vedení propojovací kus | M10-M10 | 1 | 10/2017 | 34306856613 | Shop at ECS Tuning | ||||
| 05 | Trubkové vedení propojovací kus | 1 | 10/2017 | 34306878927 | Shop at ECS Tuning | |||||
| 06 | Propojovací kus | M10X1 | 2 | 34326868934 | Shop at ECS Tuning | |||||
| 07 | Vodicí svorka jednoduchá | 1 | 34306858577 | Shop at ECS Tuning | ||||||
| 08 | Vodicí svorka dvojitá | 7 | 34306858578 | Shop at ECS Tuning | ||||||
| 09 | Vodicí svorka dvojitá | 1 | 34306858579 | Shop at ECS Tuning | ||||||
| 10 | Přídržné péro | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 11 | Vodicí svorka dvojitá | 1 | 34326871117 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 One Brzdové potrubí zadní?
- This technical diagram illustrates the Brzdové potrubí zadní within the Brzdy group for the MINI Clubman F54 One. It provides a detailed exploded view of the components, identifying key parts such as the Brzdová hadice zadní (Part #34306798466).
- Which models use the hardware listed in this Brzdové potrubí zadní?
- The hardware and components featured in the Brzdové potrubí zadní are specific to the MINI Clubman F54 One. These technical specifications ensure that parts like the Brzdová hadice zadní (34306798466) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brzdové potrubí zadní assembly?
- Each item in the Brzdové potrubí zadní corresponds to the numbered list below the illustration. For the MINI Clubman F54 One, you can identify the Brzdová hadice zadní by locating its position on the schematic, which then links to the official BMW part number 34306798466 for the Brzdy section.
