Brzdové potrubí přední for BMW 1 Series F70 120 (2025)

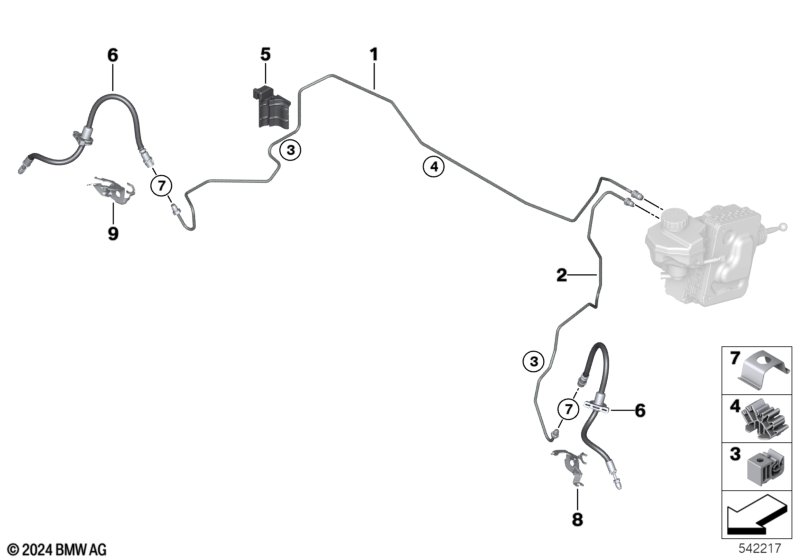

This Brzdové potrubí přední technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trubkové vedení | 1 | 34308854890 | NoS | Shop at ECS Tuning | |||||
| 02 | Trubkové vedení | 1 | 34308854889 | NoS | Shop at ECS Tuning | |||||
| 03 | Svorka vedení | 2 | 07148851872 | Shop at ECS Tuning | ||||||
| 04 | vodicí svorka pětinásobná | 2 | 34306858580 | Shop at ECS Tuning | ||||||
| 05 | Držák brzdové potrubí | 1 | 34306855949 | Shop at ECS Tuning | ||||||
| 06 | Brzdová hadice přední | 2 | 34308831099 | Shop at ECS Tuning | ||||||
| 07 | Přídržné péro | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 08 | Držák brzdová hadička vpředu vlevo | 1 | 34306854967 | Shop at ECS Tuning | ||||||
| 09 | Držák brzdová hadička vpředu vpravo | 1 | 34306854968 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Díl není centrálně skladován.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F70 120 Brzdové potrubí přední?
- This technical diagram illustrates the Brzdové potrubí přední within the Brzdy group for the 1 Series F70 120 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Trubkové vedení (Part #34308854890).
- Which models use the hardware listed in this Brzdové potrubí přední?
- The hardware and components featured in the Brzdové potrubí přední are specific to the 1 Series F70 120 produced during 2025. These technical specifications ensure that parts like the Trubkové vedení (34308854890) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brzdové potrubí přední assembly?
- Each item in the Brzdové potrubí přední corresponds to the numbered list below the illustration. For the 1 Series F70 120, you can identify the Trubkové vedení by locating its position on the schematic, which then links to the official BMW part number 34308854890 for the Brzdy section.
