Nožní páka for BMW 5 Series E12 518 (1981)

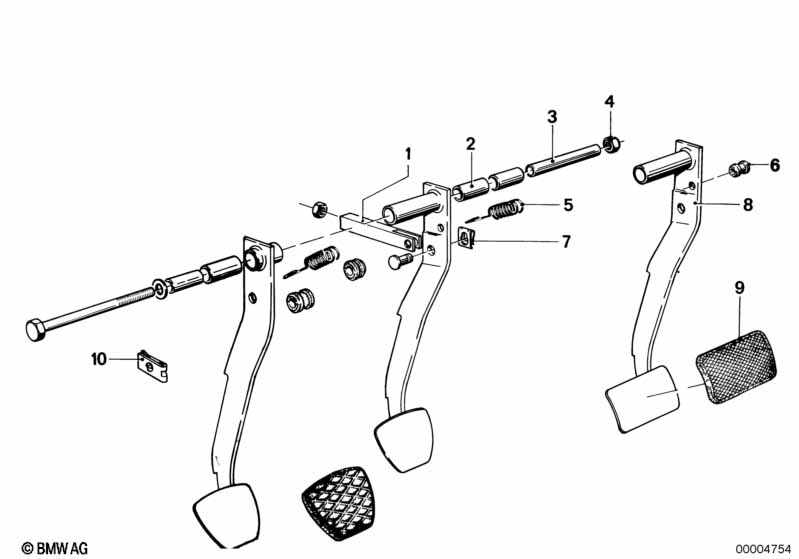

This Nožní páka technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rozvidlená hlava | 1 | 34331113265 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Ložiskové pouzdro | 2 | 35214045707 | $2.18 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Distanční objímka | 1 | 35211104621 | $2.75 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice samojisticí | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Tažná pružina | 1 | 35211103906 | $2.43 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Průchodka | 1 | 35211120897 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Svorka | 1 | 34331120538 | $0.60 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 518 Nožní páka?
- This technical diagram illustrates the Nožní páka within the Nožní ovládání group for the 5 Series E12 518 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Rozvidlená hlava (Part #34331113265).
- Which models use the hardware listed in this Nožní páka?
- The hardware and components featured in the Nožní páka are specific to the 5 Series E12 518 produced during 1981. These technical specifications ensure that parts like the Rozvidlená hlava (34331113265) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Nožní páka assembly?
- Each item in the Nožní páka corresponds to the numbered list below the illustration. For the 5 Series E12 518, you can identify the Rozvidlená hlava by locating its position on the schematic, which then links to the official BMW part number 34331113265 for the Nožní ovládání section.
