Ovládání brzdy for BMW MINI R50 Cooper (2000)

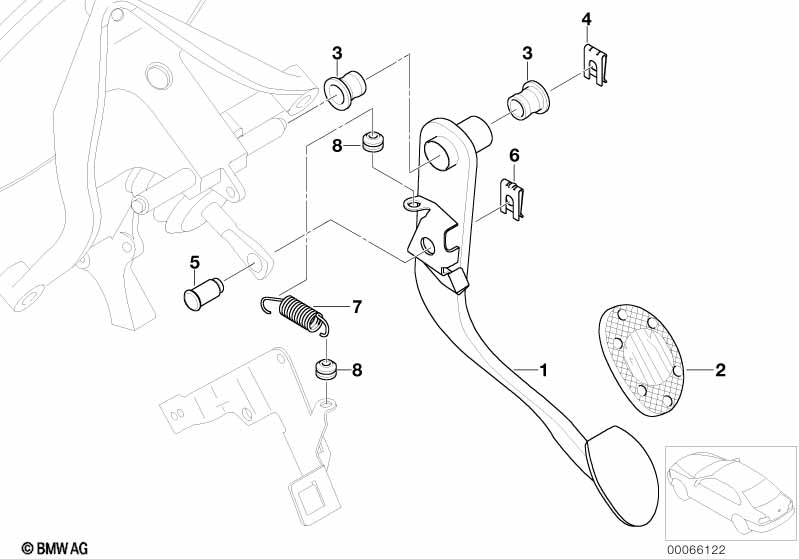

This Ovládání brzdy technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pedál brzdy | 1 | 35211512744 | $37.08 | Shop at ECS Tuning | |||||
| Pro vozidla s Automatická převodovka |
S205A=Ano |
|||||||||
| 01 | Pedál brzdy | 1 | 35211512746 | $23.63 | Shop at ECS Tuning | |||||
| 02 | Potah pedálu | 1 | 35216765620 | $4.07 | Shop at ECS Tuning | |||||
| Pro vozidla s Automatická převodovka |
S205A=Ano |
|||||||||
| 02 | Potah pedálu | 1 | 35211490915 | $4.07 | Shop at ECS Tuning | |||||
| 03 | Ložiskové pouzdro | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
| 04 | Pojistka | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Pojistný čep | 1 | 34331505053 | $3.68 | Shop at ECS Tuning | |||||
| 06 | Pojistka | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Vratná pružina | D=11MM | 1 | 35211161587 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Průchodka | D=7,5MM | 2 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Ovládání brzdy?
- This technical diagram illustrates the Ovládání brzdy within the Nožní ovládání group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Pedál brzdy (Part #35211512744).
- Which models use the hardware listed in this Ovládání brzdy?
- The hardware and components featured in the Ovládání brzdy are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Pedál brzdy (35211512744) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ovládání brzdy assembly?
- Each item in the Ovládání brzdy corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Pedál brzdy by locating its position on the schematic, which then links to the official BMW part number 35211512744 for the Nožní ovládání section.
