Diskové kolo ocel for BMW 7 Series E23 728i (1986)

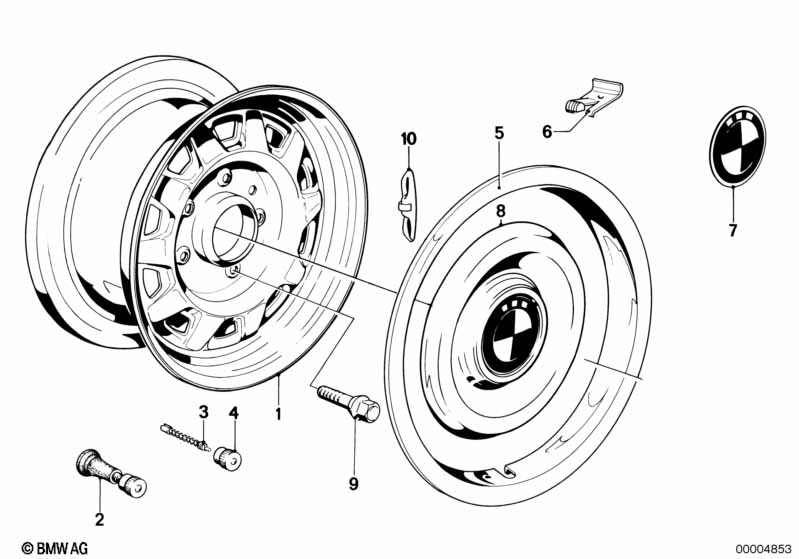

This Diskové kolo ocel technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Diskové kolo ocel stříbrné | 61/2JX14 ET:25 | 4 | 36111119093 | $83.70 | Shop at ECS Tuning | ||||
| 01 | Diskové kolo ocel stříbrné | 6JX14 | 4 | 36113905369 | Shop at ECS Tuning | |||||
| 02 | Pryžový ventil | 4 | 36122904161 | Shop at ECS Tuning | ||||||
| 03 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Ozdobný kroužek | 4 | 36132904336 | Shop at ECS Tuning | ||||||
| 06 | Přídržné péro | X | 36132903710 | Shop at ECS Tuning | ||||||
| 07 | Plaketa s lepicí fólií | D=82MM | 4 | 36131181104 | $5.79 | Shop at ECS Tuning | ||||
| 08 | Kryt kola | 4 | 36133901936 | Shop at ECS Tuning | ||||||
| 09 | Šroub kola černý | X | 36132902779 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Diskové kolo ocel?
- This technical diagram illustrates the Diskové kolo ocel within the Kola group for the 7 Series E23 728i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Diskové kolo ocel stříbrné (Part #36111119093).
- Which models use the hardware listed in this Diskové kolo ocel?
- The hardware and components featured in the Diskové kolo ocel are specific to the 7 Series E23 728i produced during 1986. These technical specifications ensure that parts like the Diskové kolo ocel stříbrné (36111119093) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Diskové kolo ocel assembly?
- Each item in the Diskové kolo ocel corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Diskové kolo ocel stříbrné by locating its position on the schematic, which then links to the official BMW part number 36111119093 for the Kola section.
