Diskové kolo ocel Styl.1 for BMW 5 Series E28 520i (1987)

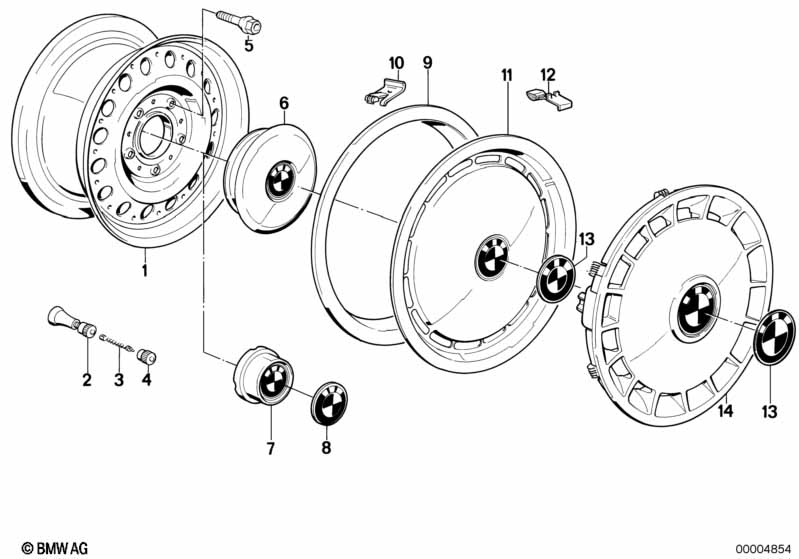

This Diskové kolo ocel Styl.1 technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Diskové kolo ocel | 6JX14 ET:22 | 4 | 36111117251 | $84.82 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Diskové kolo ocel stříbrné | 61/2JX14 ET:25 | 4 | 36111119093 | $83.70 | Shop at ECS Tuning | ||||
| 01 | Diskové kolo ocel | 51/2JX14 ET:22 | 4 | 36111119682 | $103.79 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Diskové kolo ocel stříbrné | 6JX14 ET:22 | 4 | 36111123703 | $104.61 | Shop at ECS Tuning | ||||
| 01 | Diskové kolo ocel stříbrné | 51/2JX14 ET:22 | 4 | 36111123704 | $111.55 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Diskové kolo ocel černé | 51/2JX14 ET:22 | 4 | 36111129417 | $97.41 | Shop at ECS Tuning | ||||
| 01 | Diskové kolo ocel Trx | 165TR390 ET:22 | 4 | 36111178934 | $72.50 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Pryžový ventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Šroub kola černý | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 07 | Kryt náboje | D=104MM | 4 | 36131179141 | $17.25 | UKONČENO | Shop at ECS Tuning | |||
| vhodné pouze pro | ||||||||||
| -- | Diskové kolo ocel Trx | 165TR390 ET:22 | X | 36111178934 | $72.50 | UKONČENO | Shop at ECS Tuning | |||
| 08 | BMW plaketa s lepicí fólií | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| vhodné pouze pro | ||||||||||
| -- | Diskové kolo ocel Trx | 165TR390 ET:22 | X | 36111178934 | $72.50 | UKONČENO, ABE 9780826, ABE 9781667, ABE 9781842 | Shop at ECS Tuning | |||
| 13 | BMW plaketa ražená s lepicí fólií | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 14 | Úplný kryt kola | D=392MM | 4 | 36131180667 | $42.66 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- ABE = Allgemeine Betriebserlaubnis (Všeobecné provozní povolení)
