Diskové kolo lehký kov for BMW 7 Series E23 728i (1986)

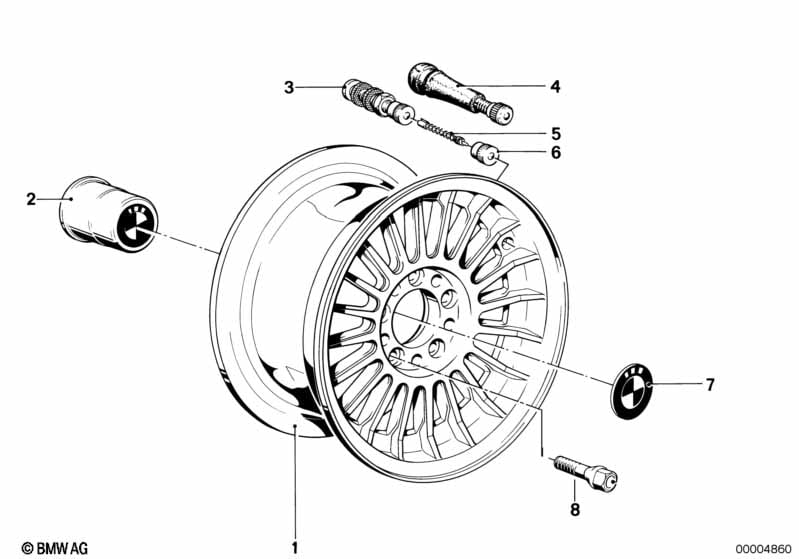

This Diskové kolo lehký kov technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Diskové kolo lehký kov | 6 1/2X14 ET:25 | 4 | 36111118282 | $266.68 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Kryt náboje | 4 | 36131114435 | $18.73 | Shop at ECS Tuning | |||||
| 03 | Šroubový ventil | 4 | 36121119332 | $6.29 | Shop at ECS Tuning | |||||
| 04 | Pryžový ventil | 4 | 36122904161 | Shop at ECS Tuning | ||||||
| 05 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 06 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 07 | Plaketa s lepicí fólií | D=57MM | 4 | 36131181106 | $4.79 | Shop at ECS Tuning | ||||
| 08 | Šroub kola černý | X | 36132902779 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
