Litinové kolo montážní díly for BMW R45-R65LS..78-85 R65LS (1983)

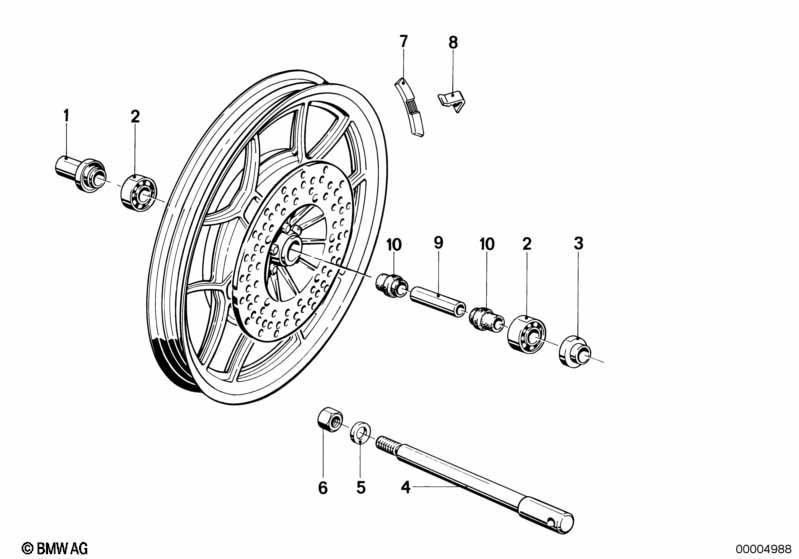

This Litinové kolo montážní díly technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pouzdro levé | 1 | 36311242858 | $3.64 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Kuličkové ložisko | 17X40X12 | 2 | 36311242854 | $16.21 | Shop at ECS Tuning | ||||
| 03 | Pouzdro pravé | 1 | 36311242864 | $3.64 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Zástrčná hřídel | 17MM | 1 | 36311236144 | $69.37 | UKONČENO, +core | Shop at ECS Tuning | |||
| 05 | Podložka | 1 | 34111233020 | $3.75 | Shop at ECS Tuning | |||||
| 06 | Šestihranná matice | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Vyvažovací závaží | 10G | X | 36311242944 | $3.15 | Shop at ECS Tuning | ||||
| 07 | Vyvažovací závaží | 15G | X | 36311242945 | $3.23 | Shop at ECS Tuning | ||||
| 07 | Vyvažovací závaží | 20G | X | 36311242946 | $3.48 | Shop at ECS Tuning | ||||
| 07 | Vyvažovací závaží | 30G | X | 36311242947 | $3.96 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Vyvažovací závaží | 25G | X | 36311242948 | $3.65 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Pružina | X | 36311451792 | $1.97 | Shop at ECS Tuning | |||||
| 09 | Pouzdro | 1 | 36311242839 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Kroužek | 2 | 36311237595 | $8.67 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
