Litinové kolo-unašeč for BMW R45-R65LS..78-85 R65LS (1983)

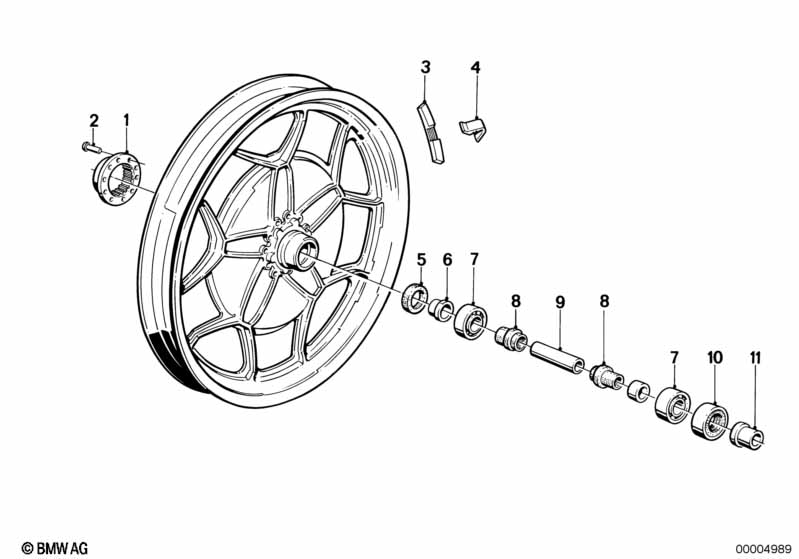

This Litinové kolo-unašeč technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulační ventil | 1 | 36311236208 | $108.26 | Shop at ECS Tuning | |||||
| 02 | Nýt | 6X25-ST-ZNS | X | 07119900800 | $0.56 | Shop at ECS Tuning | ||||
| 03 | Vyvažovací závaží | 10G | X | 36311242944 | $3.15 | Shop at ECS Tuning | ||||
| 03 | Vyvažovací závaží | 15G | X | 36311242945 | $3.23 | Shop at ECS Tuning | ||||
| 03 | Vyvažovací závaží | 20G | X | 36311242946 | $3.48 | Shop at ECS Tuning | ||||
| 03 | Vyvažovací závaží | 30G | X | 36311242947 | $3.96 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Vyvažovací závaží | 25G | X | 36311242948 | $3.65 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Pružina | X | 36311451792 | $1.97 | Shop at ECS Tuning | |||||
| 05 | Hřídelový těsnicí kroužek | 1 | 36311235833 | Shop at ECS Tuning | ||||||
| 06 | Objímka | 9,2MM | 1 | 36314038142 | $12.44 | Shop at ECS Tuning | ||||
| 07 | Kuželíkové ložisko | 40X17X13.25 | 2 | 07119985005 | $57.36 | Shop at ECS Tuning | ||||
| 08 | Kroužek | 2 | 36311237595 | $8.67 | Shop at ECS Tuning | |||||
| 09 | Trubka | 1 | 36311235785 | $33.11 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Hřídelový těsnicí kroužek | 22X40X7 | 1 | 36311235838 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Hřídelový těsnicí kroužek | 22X40X7 | 1 | 36311240238 | Shop at ECS Tuning | |||||
| 11 | Přítlačný kroužek | 1 | 36311230322 | $8.67 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Litinové kolo-unašeč?
- This technical diagram illustrates the Litinové kolo-unašeč within the Kola s pneumatikami group for the R45-R65LS..78-85 R65LS produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Regulační ventil (Part #36311236208).
- Which models use the hardware listed in this Litinové kolo-unašeč?
- The hardware and components featured in the Litinové kolo-unašeč are specific to the R45-R65LS..78-85 R65LS produced during 1983. These technical specifications ensure that parts like the Regulační ventil (36311236208) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Litinové kolo-unašeč assembly?
- Each item in the Litinové kolo-unašeč corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the Regulační ventil by locating its position on the schematic, which then links to the official BMW part number 36311236208 for the Kola s pneumatikami section.
