BMW složené kolo hvězd. paprsek 76 for BMW 7 Series E38 728i (1998)

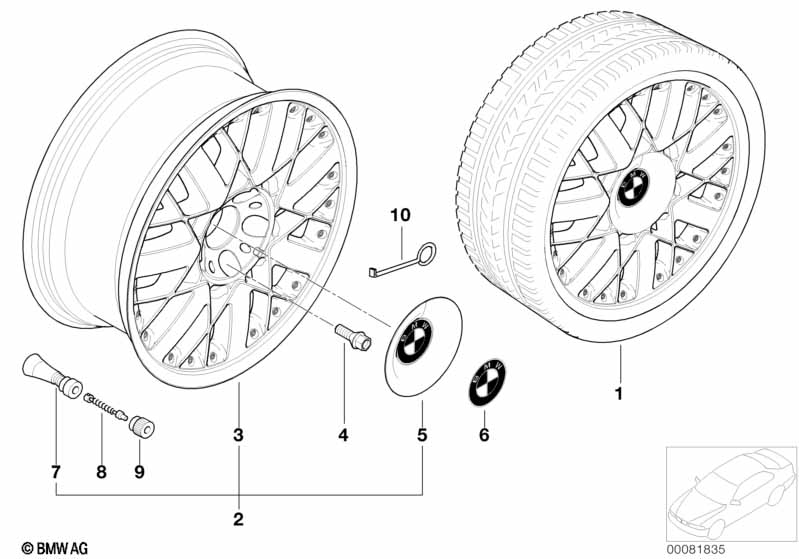

This BMW složené kolo hvězd. paprsek 76 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Diskové kolo lehký kov 2dílné | 8JX18 ET:20 | 4 | 36116751357 | $644.34 | UKONČENO, +core | Shop at ECS Tuning | |||
| 03 | Diskové kolo lehký kov 2dílné | 9 1/2JX18 ET:25 | 2 | 36116751356 | $735.08 | UKONČENO, +core | Shop at ECS Tuning | |||
| 04 | Šroub kola černý | M12X1,5 | 16 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Kryt náboje | 4 | 36136751365 | $22.50 | +core | Shop at ECS Tuning | ||||
| 06 | BMW plaketa ražená s lepicí fólií | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 07 | Pryžový ventil | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| Pro vozidla s Kontrola tlaku v pneumatikách (RDC) |
S265A=Ano |
|||||||||
| 07 | Šroubový ventil kontr.tl. v pneu. | 4 | 08/1998 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 08 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Vhodné pouze pro Šroubový ventil kontr.tl. v pneu. |
||||||||||
| 09 | Čepička ventilu kontr.tl. v pneu. | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 10 | Stahovák krytu kola | 1 | 36132294421 | $9.86 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
