BMW kolo z leh. sl. V-paprsek 141 for BMW 1 Series E81 116d (2011)

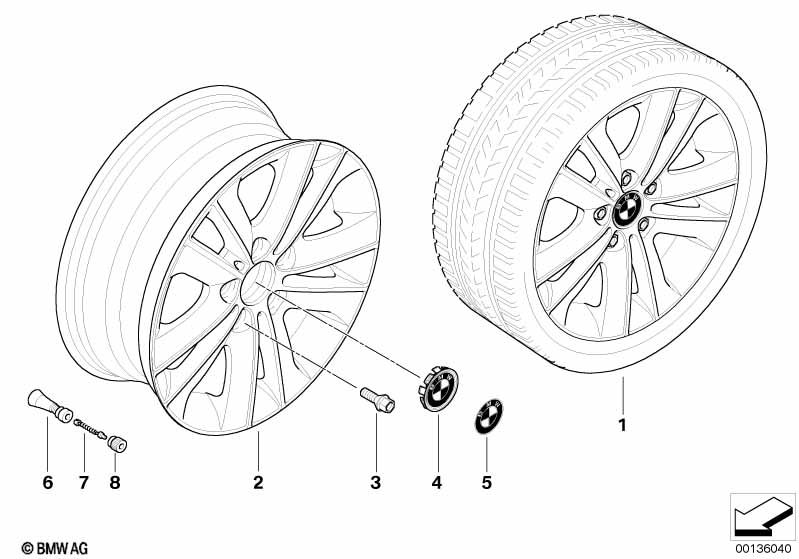

This BMW kolo z leh. sl. V-paprsek 141 technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s BMW kolo z leh. sl. V-paprsek 141 |
S2KCA=Ano |
||||||||
| 02 | Diskové kolo lehký kov | 7JX17 ET:47 | 4 | 36116775621 | $311.95 | Shop at ECS Tuning | ||||
| 03 | Šroub kola černý | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Kryt náboje s chromovaným okrajem | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW plaketa ražená/lakovaná | 4 | 36136767547 | $5.02 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Pryžový ventil | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
