BMW kolo z leh. sl. hvězd. paprsek 218 for BMW 6 Series E64 645Ci (2005)

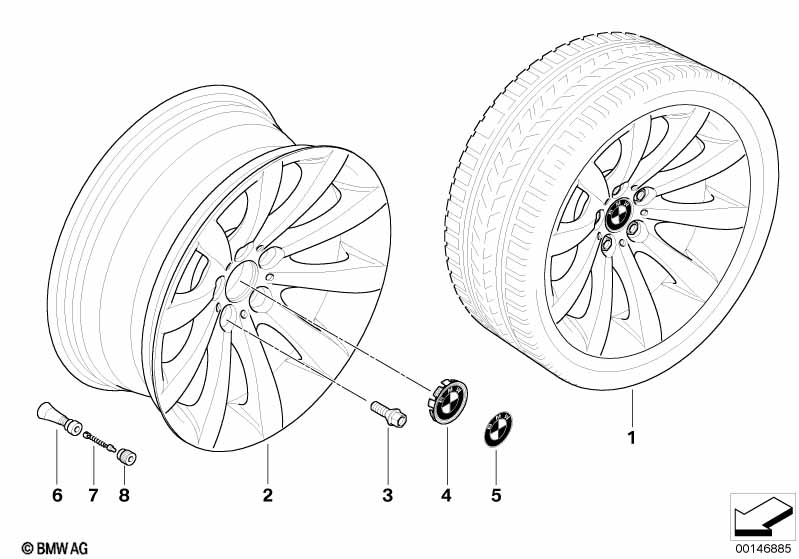

This BMW kolo z leh. sl. hvězd. paprsek 218 technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Šroub kola černý | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Kryt náboje s chromovaným okrajem | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW plaketa ražená/lakovaná | 4 | 36136767547 | $5.02 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Pryžový ventil | L=48,5MM | 4 | 03/2006 | 36121178869 | $3.30 | Shop at ECS Tuning | |||
| Pro vozidla s Provedení Kanada |
L838A=Ano |
|||||||||
| 06 | Pryžový ventil | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Čepička ventilu | 4 | 03/2006 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Kanada |
L838A=Ano |
|||||||||
| 08 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
