BMW kolo z leh. sl. hvězd. paprsek 264 for BMW 1 Series E87 LCI 130i (2011)

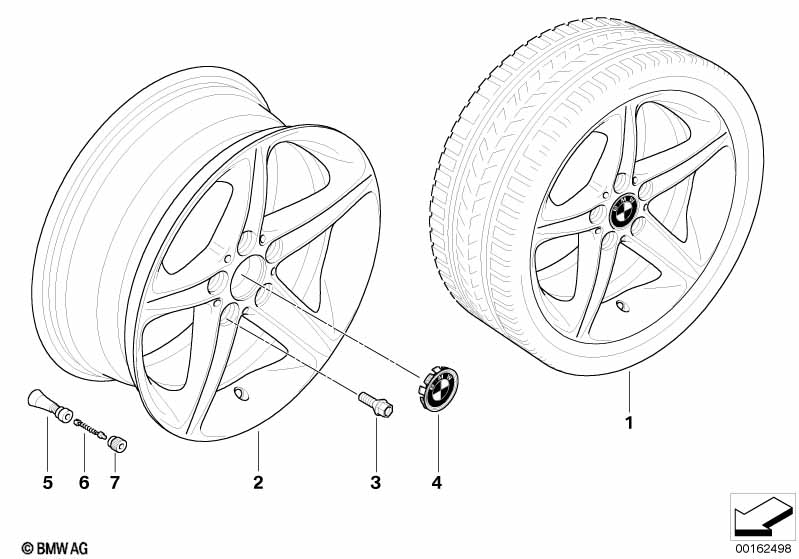

This BMW kolo z leh. sl. hvězd. paprsek 264 technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 130i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s BMW kolo z leh. sl. hvězd. paprsek 264 |
S2SMA=Ano |
||||||||
| 02 | Diskové kolo lehký kov | 71/2JX18 ET:49 | 2 | 36116779800 | $361.95 | Shop at ECS Tuning | ||||
| 02 | Diskové kolo lehký kov | 81/2JX18 ET:52 | 2 | 36116779803 | $396.95 | Shop at ECS Tuning | ||||
| 03 | Šroub kola černý | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Kryt náboje s chromovaným okrajem | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Pryžový ventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
