Diskové kolo lehký kov kované Styl.3 for BMW 7 Series E32 730iL (1992)

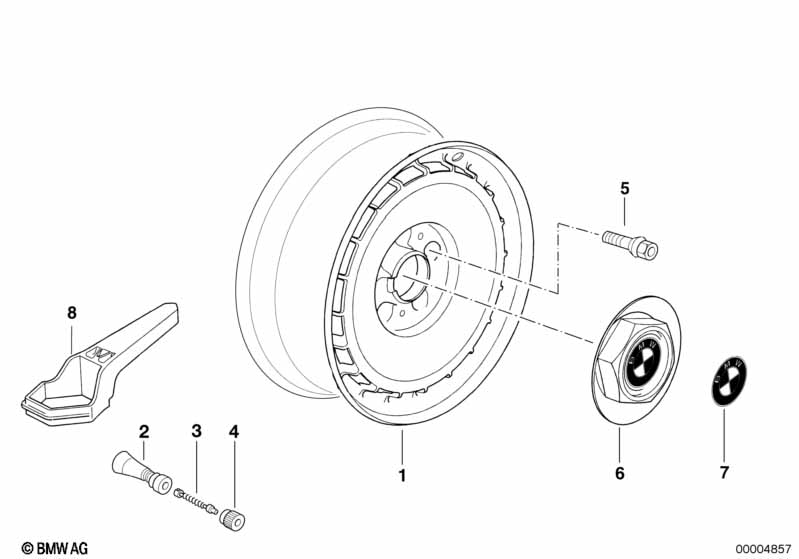

This Diskové kolo lehký kov kované Styl.3 technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Diskové kolo lehký kov kované | 7JX15 ET:20 | 4 | 09/1988 | 36111180324 | $535.68 | ABE 9782193 | Shop at ECS Tuning | ||
| 02 | Pryžový ventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Šroub kola černý | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Kryt náboje | 4 | 09/1988 | 36131180293 | $34.00 | Shop at ECS Tuning | ||||
| 07 | BMW plaketa ražená s lepicí fólií | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 08 | Klíč kryt náboje | SW80 | 1 | 36131179325 | $9.12 | Shop at ECS Tuning |
Notes
- ABE = Allgemeine Betriebserlaubnis (Všeobecné provozní povolení)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730iL Diskové kolo lehký kov kované Styl.3?
- This technical diagram illustrates the Diskové kolo lehký kov kované Styl.3 within the Kola group for the 7 Series E32 730iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Diskové kolo lehký kov kované (Part #36111180324).
- Which models use the hardware listed in this Diskové kolo lehký kov kované Styl.3?
- The hardware and components featured in the Diskové kolo lehký kov kované Styl.3 are specific to the 7 Series E32 730iL produced during 1992. These technical specifications ensure that parts like the Diskové kolo lehký kov kované (36111180324) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Diskové kolo lehký kov kované Styl.3 assembly?
- Each item in the Diskové kolo lehký kov kované Styl.3 corresponds to the numbered list below the illustration. For the 7 Series E32 730iL, you can identify the Diskové kolo lehký kov kované by locating its position on the schematic, which then links to the official BMW part number 36111180324 for the Kola section.
