MINI kolo z leh.sl.5 Hole Circ. Spoke123 for BMW MINI Paceman R61 Cooper

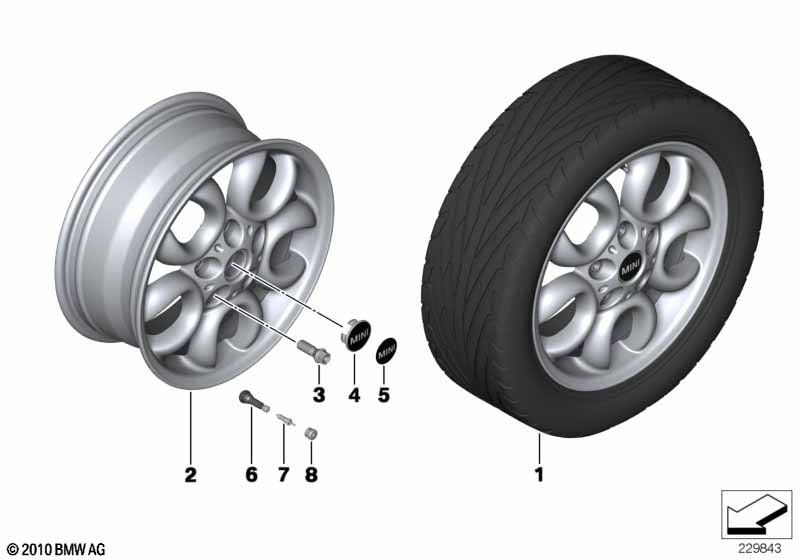

This MINI kolo z leh.sl.5 Hole Circ. Spoke123 technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s MINI Kolo z leh.sl. 5Hole Circular Spoke |
S2GNA=Ano |
||||||||
| 02 | Diskové kolo lehký kov stříbrné | 61/2JX16 ET:46 | 4 | 36109803725 | Shop at ECS Tuning | |||||
| 03 | Šroub kola černý | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | MINI kryt náboje | D=53.9MM | 4 | 36131171069 | $4.87 | Shop at ECS Tuning | ||||
| 05 | MINI plaketa s lepicí fólií | 4 | 36136758687 | $3.58 | Shop at ECS Tuning | |||||
| 06 | Pryžový ventil | L=42,5MM | 4 | 07/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ano |
|||||||||
| 06 | Šroubový ventil kontr.tl. v pneu. | 4 | 07/2014 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 07 | Vložka ventilu | 4 | 07/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| 08 | Čepička ventilu | 4 | 07/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ne |
|||||||||
| 08 | Čepička ventilu | 4 | 07/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper MINI kolo z leh.sl.5 Hole Circ. Spoke123?
- This technical diagram illustrates the MINI kolo z leh.sl.5 Hole Circ. Spoke123 within the Kola group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Diskové kolo lehký kov stříbrné (Part #36109803725).
- Which models use the hardware listed in this MINI kolo z leh.sl.5 Hole Circ. Spoke123?
- The hardware and components featured in the MINI kolo z leh.sl.5 Hole Circ. Spoke123 are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Diskové kolo lehký kov stříbrné (36109803725) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the MINI kolo z leh.sl.5 Hole Circ. Spoke123 assembly?
- Each item in the MINI kolo z leh.sl.5 Hole Circ. Spoke123 corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Diskové kolo lehký kov stříbrné by locating its position on the schematic, which then links to the official BMW part number 36109803725 for the Kola section.
