MINI diskové kolo ocel for BMW MINI Paceman R61 Cooper

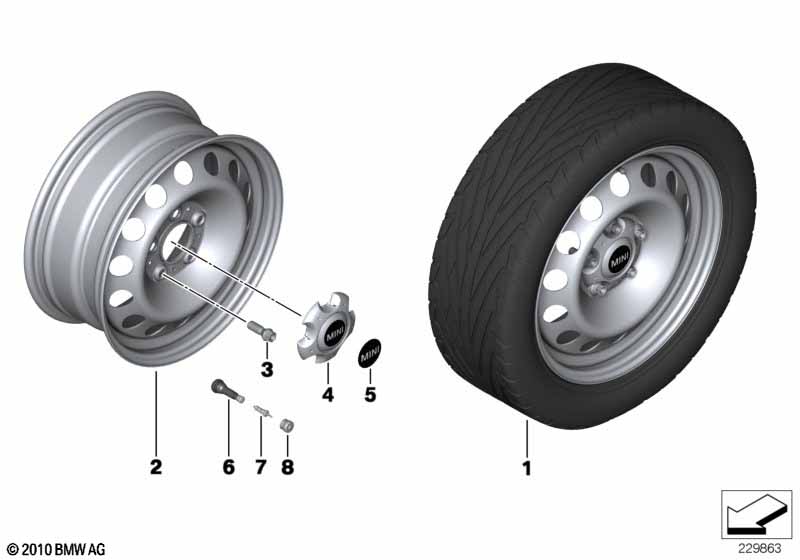

This MINI diskové kolo ocel technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Diskové kolo ocel stříbrné | 61/2JX16 ET:46 | 4 | 36109803650 | Shop at ECS Tuning | |||||
| Jen pro zimní pneumatiky | ||||||||||
| 03 | Šroub kola černý | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | MINI kryt náboje | D=135.4MM | 4 | 36109804232 | Shop at ECS Tuning | |||||
| 05 | MINI plaketa s lepicí fólií | 4 | 36136758687 | $3.58 | Shop at ECS Tuning | |||||
| 06 | Pryžový ventil | L=42,5MM | 4 | 07/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ne |
|||||||||
| 06 | Pryžový ventil | L=42,5MM | 4 | 07/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| 07 | Vložka ventilu | 4 | 07/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ne |
|||||||||
| 07 | Vložka ventilu | 4 | 07/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| 08 | Čepička ventilu | 4 | 07/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ne |
|||||||||
| 08 | Čepička ventilu | 4 | 07/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper MINI diskové kolo ocel?
- This technical diagram illustrates the MINI diskové kolo ocel within the Kola group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Diskové kolo ocel stříbrné (Part #36109803650).
- Which models use the hardware listed in this MINI diskové kolo ocel?
- The hardware and components featured in the MINI diskové kolo ocel are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Diskové kolo ocel stříbrné (36109803650) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the MINI diskové kolo ocel assembly?
- Each item in the MINI diskové kolo ocel corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Diskové kolo ocel stříbrné by locating its position on the schematic, which then links to the official BMW part number 36109803650 for the Kola section.
