MINI LK Rad Edged Spoke 535 - 19" for BMW MINI Countryman F60 One

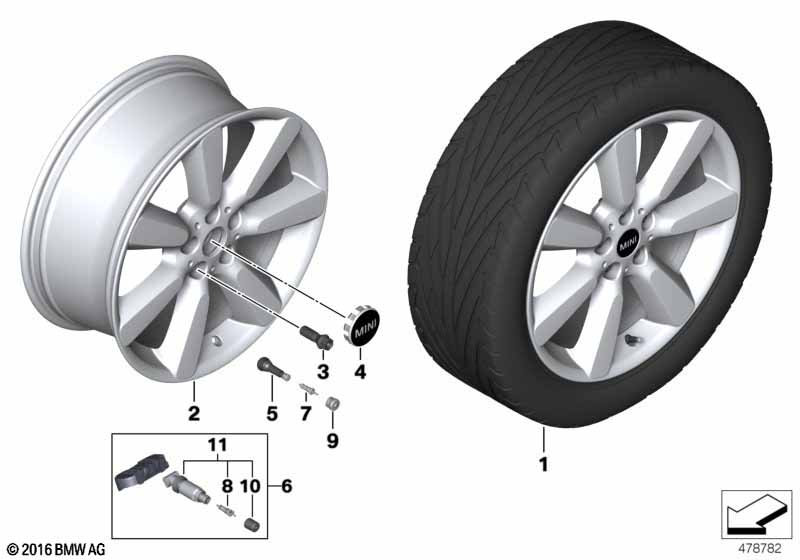

This MINI LK Rad Edged Spoke 535 - 19" technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pozor: Na základě nařízení EU o akumulátorech je označení dílu pro senzory RDC, resp. pro díly s pevně zabudovaným akumulátorem ze zákona povinné! Přiložený dokument je nutno při nákupu tohoto výrobku vytisknout a předat jej zákazníkovi! Pro vozidla s MINI LM kolo Edged Spoke nebo MINI LM kolo Edged Spoke |
S20HA=Ano S2QKA=Ano |
||||||||
| 02 | Disk kola lehký kov "Brightsilver" | 8JX19 ET:47 | 4 | 36116856037 | Shop at ECS Tuning | |||||
| 03 | Šroub kola černý | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Kryt náboje s chromovaným okrajem | MINI | 4 | 36136857149 | Shop at ECS Tuning | |||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ne |
|||||||||
| 05 | Pryžový ventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ano |
|||||||||
| 06 | Elektron.modul kola RDCi se šroub.vent. | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ne |
|||||||||
| 07 | Vložka ventilu | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ano |
|||||||||
| 08 | Vložka ventilu RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ne |
|||||||||
| 09 | Čepička ventilu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Pro vozidla s Indikace tlaku pneumatik |
S2VBA=Ano |
|||||||||
| 10 | Čepička ventilu RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Opr. sada šroubový ventil RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 One MINI LK Rad Edged Spoke 535 - 19"?
- This technical diagram illustrates the MINI LK Rad Edged Spoke 535 - 19" within the Kola group for the MINI Countryman F60 One. It provides a detailed exploded view of the components, identifying key parts such as the Disk kola lehký kov "Brightsilver" (Part #36116856037).
- Which models use the hardware listed in this MINI LK Rad Edged Spoke 535 - 19"?
- The hardware and components featured in the MINI LK Rad Edged Spoke 535 - 19" are specific to the MINI Countryman F60 One. These technical specifications ensure that parts like the Disk kola lehký kov "Brightsilver" (36116856037) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the MINI LK Rad Edged Spoke 535 - 19" assembly?
- Each item in the MINI LK Rad Edged Spoke 535 - 19" corresponds to the numbered list below the illustration. For the MINI Countryman F60 One, you can identify the Disk kola lehký kov "Brightsilver" by locating its position on the schematic, which then links to the official BMW part number 36116856037 for the Kola section.
