Ovládání přední klapka for BMW 8 Series E31 850Ci (1999)

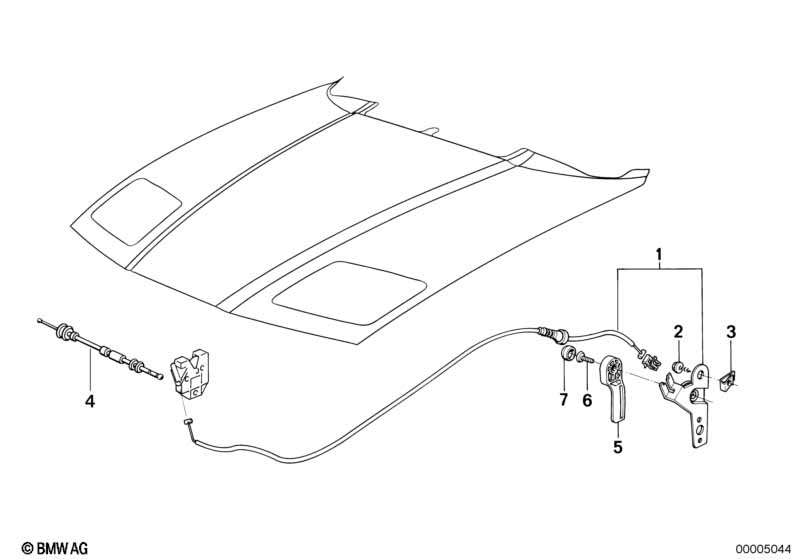

This Ovládání přední klapka technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ovládání přední klapka | 1 | 51231970034 | $32.79 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub na plech | ST4,8X13-ZN3 | 2 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Prestol klec | ST4,8 | 2 | 07129925765 | $0.18 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Bovden | 1 | 51231970587 | $27.15 | Shop at ECS Tuning | |||||
| 05 | Páka bovdenu | 1 | 51231970035 | $8.58 | Shop at ECS Tuning | |||||
| 06 | Šroub | 1 | 51181813015 | $0.27 | Shop at ECS Tuning | |||||
| 07 | Odnímatelný kryt | SCHWARZ | 1 | 51181823474 | $0.21 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Ovládání přední klapka?
- This technical diagram illustrates the Ovládání přední klapka within the Karoserie plechové díly group for the 8 Series E31 850Ci produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Ovládání přední klapka (Part #51231970034).
- Which models use the hardware listed in this Ovládání přední klapka?
- The hardware and components featured in the Ovládání přední klapka are specific to the 8 Series E31 850Ci produced during 1999. These technical specifications ensure that parts like the Ovládání přední klapka (51231970034) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ovládání přední klapka assembly?
- Each item in the Ovládání přední klapka corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Ovládání přední klapka by locating its position on the schematic, which then links to the official BMW part number 51231970034 for the Karoserie plechové díly section.
