Čelní stěna jednotlivé díly for BMW 5 Series E28 520i (1987)

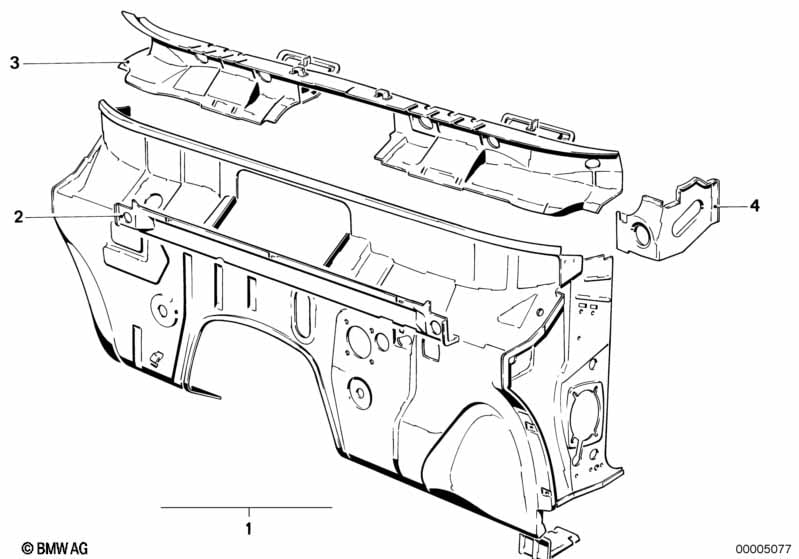

This Čelní stěna jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Provedení Japonsko Přední stavba |
L807A=Ano |
|||||||||
| 01 | Čelní stěna | BASIS | 1 | 41131887851 | $379.44 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Uzavírací stěna topení spodní díl | 1 | 41131939525 | $46.59 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Držák přístrojová deska | 1 | 41241875095 | $299.19 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Držák přístrojová deska | 1 | 41241875096 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Uzavírací stěna topení levá | 1 | 41131876045 | $20.87 | Shop at ECS Tuning | |||||
| 04 | Uzavírací stěna topení pravá | 1 | 41131876046 | $20.87 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Čelní stěna jednotlivé díly?
- This technical diagram illustrates the Čelní stěna jednotlivé díly within the Karoserie plechové díly group for the 5 Series E28 520i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Čelní stěna (Part #41131887851).
- Which models use the hardware listed in this Čelní stěna jednotlivé díly?
- The hardware and components featured in the Čelní stěna jednotlivé díly are specific to the 5 Series E28 520i produced during 1987. These technical specifications ensure that parts like the Čelní stěna (41131887851) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Čelní stěna jednotlivé díly assembly?
- Each item in the Čelní stěna jednotlivé díly corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Čelní stěna by locating its position on the schematic, which then links to the official BMW part number 41131887851 for the Karoserie plechové díly section.
