Přední stavba jednotlivé díly for BMW 3 Series E21 323i (1979)

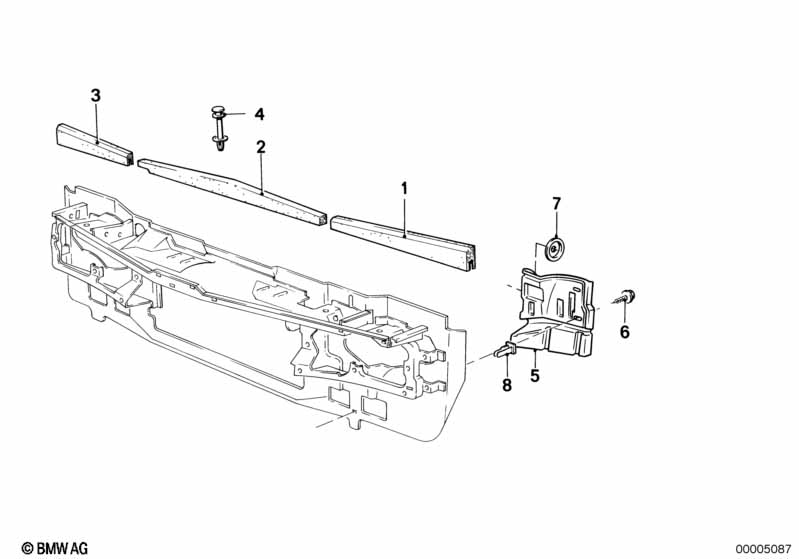

This Přední stavba jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Těsnění levé | 1 | 51711885927 | $27.34 | Shop at ECS Tuning | |||||
| 02 | Těsnění | 1 | 51711885929 | $42.97 | Shop at ECS Tuning | |||||
| 03 | Těsnění pravé | 1 | 51711885928 | $27.34 | Shop at ECS Tuning | |||||
| 05 | Kryt přední stěna levý | 1 | 51711902021 | $27.62 | Shop at ECS Tuning | |||||
| 05 | Kryt přední stěna pravý | 1 | 51711902022 | $27.62 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub na plech | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Podložka | 2 | 51711902639 | $0.61 | Shop at ECS Tuning | |||||
| 08 | Rozpěrná matice | ST 4.8 WEISS | 4 | 63171367868 | $0.60 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Přední stavba jednotlivé díly?
- This technical diagram illustrates the Přední stavba jednotlivé díly within the Karoserie plechové díly group for the 3 Series E21 323i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Těsnění levé (Part #51711885927).
- Which models use the hardware listed in this Přední stavba jednotlivé díly?
- The hardware and components featured in the Přední stavba jednotlivé díly are specific to the 3 Series E21 323i produced during 1979. These technical specifications ensure that parts like the Těsnění levé (51711885927) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Přední stavba jednotlivé díly assembly?
- Each item in the Přední stavba jednotlivé díly corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Těsnění levé by locating its position on the schematic, which then links to the official BMW part number 51711885927 for the Karoserie plechové díly section.
