Čelní stěna jednotlivé díly for BMW 3 Series E21 318 (1979)

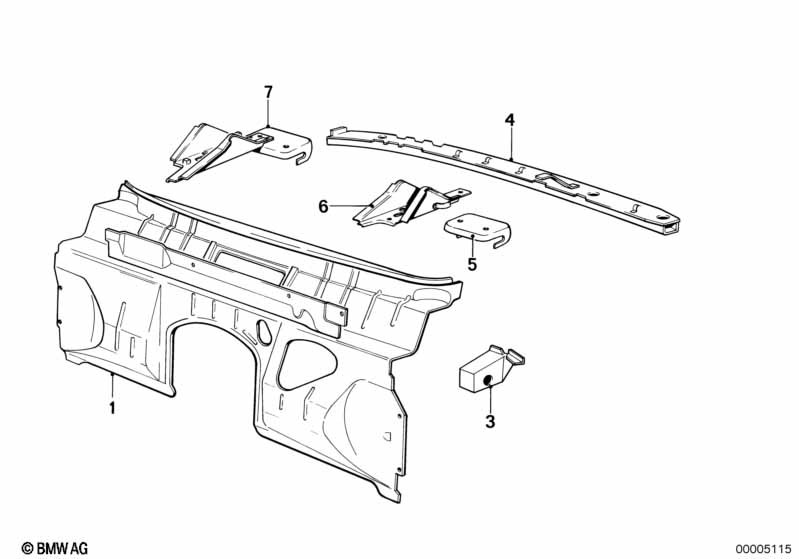

This Čelní stěna jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Čelní stěna | BASIS | 1 | 08/1977 | 41001860323 | $392.83 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Pryžový ventil | 1 | 51731817760 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Uzavírací stěna topení pravá | 1 | 41131846608 | Shop at ECS Tuning | ||||||
| 03 | Uzavírací stěna topení levá | 1 | 41131902097 | $13.84 | Shop at ECS Tuning | |||||
| 04 | Držák přístrojů | 1 | 41241862467 | $242.17 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Přídržný úhelník | 1 | 41131864965 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Konzola | 1 | 41131864957 | $12.05 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
