Rám zadního okna for BMW 7 Series E23 733i (1979)

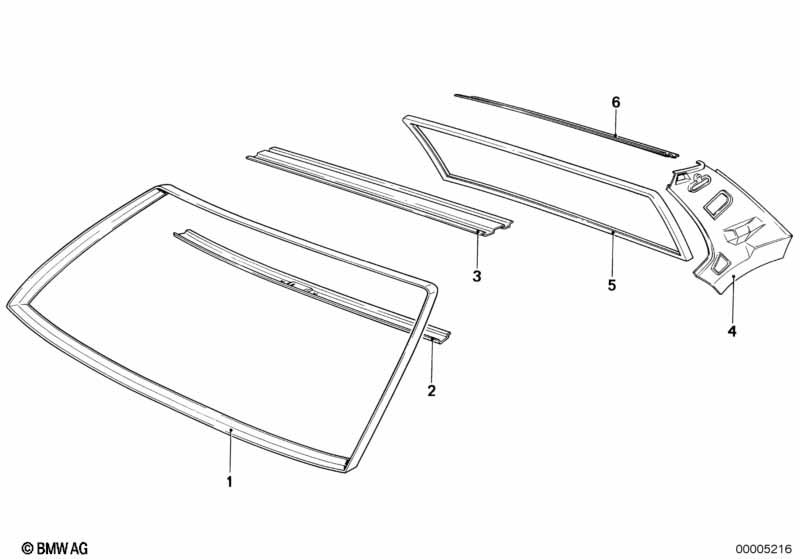

This Rám zadního okna technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rám přední sklo | 1 | 41131878444 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Krycí plech | 1 | 01/1985 | 41321878446 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Střešní oblouk | 1 | 41231878443 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Rám zadního okna levý | 1 | 01/1985 | 41321878447 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Rám zadního okna pravý | 1 | 01/1985 | 41321878448 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Rám zadní sklo | 1 | 41131878445 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Krycí plech rám zadního okna | 1 | 01/1985 | 41321878449 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
