Přední kapota/montážní díly for BMW 3 Series E21 323i (1979)

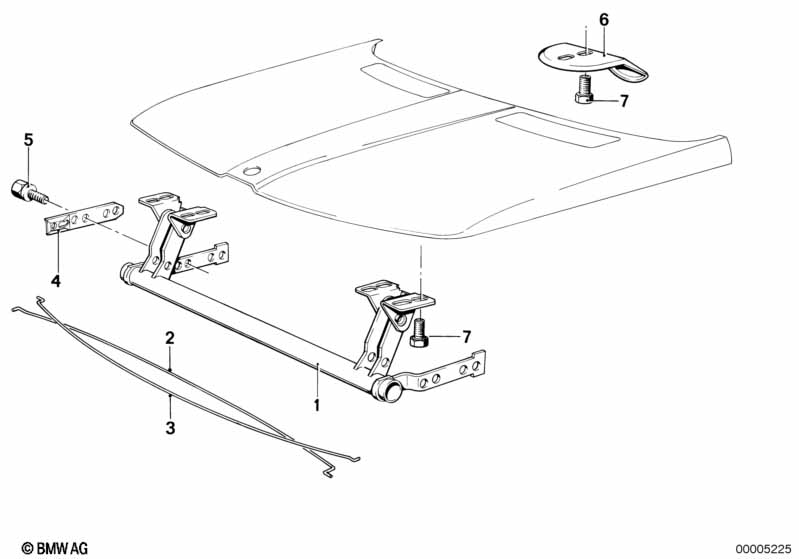

This Přední kapota/montážní díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kloub přední kapota | 1 | 41611862282 | $55.15 | Shop at ECS Tuning | |||||
| 02 | Torzní tyč levá | 1 | 41611825581 | $8.66 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Torzní tyč pravá | 1 | 41611825582 | $8.66 | Shop at ECS Tuning | |||||
| 04 | Uchycení | 2 | 41611823020 | $1.41 | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub s podložkou | M8X16-Z3-2 | 4 | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Pojistná podložka | 1 | 41611826325 | $4.74 | Shop at ECS Tuning | |||||
| 07 | Šestihranný šroub s podložkou | M6X12-Z3-2 | X | 07119915014 | $3.47 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Šestihranný šroub s podložkou | M6X12-Z4-2 | X | 07119915015 | $0.47 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
