Díly podlahy zadní for BMW 8 Series E31 850Ci (1991)

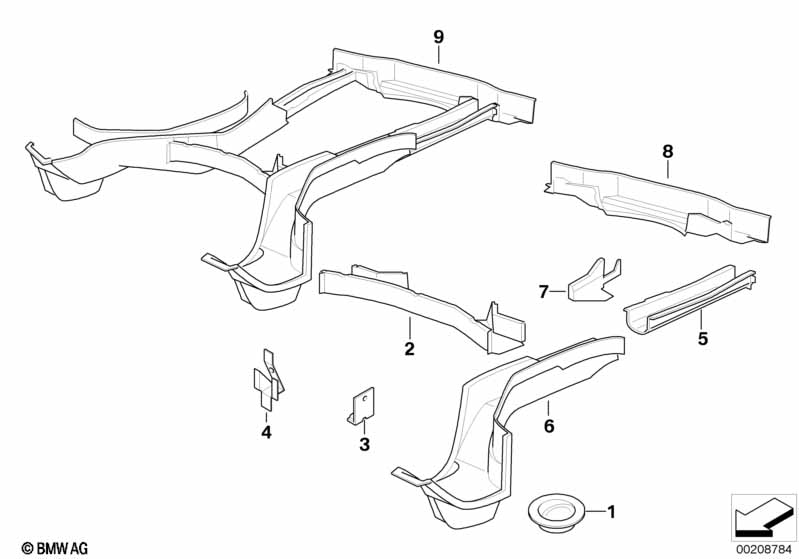

This Díly podlahy zadní technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pružné ložisko | 2 | 41118108468 | $9.18 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Příčný držák dno zavaz. prostoru přední | 1 | 41118108464 | $112.72 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Vyztužení | 1 | 41128108474 | $2.44 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Držák palivová nádrž zadní levý | 1 | 41118108462 | $6.36 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Podélný nosník zadní levý | 1 | 41118108465 | $192.52 | Shop at ECS Tuning | |||||
| 05 | Podélný nosník zadní pravý | 1 | 41118108466 | $192.52 | Shop at ECS Tuning | |||||
| 06 | Podélný nosník zadní levý | 1 | 41118152995 | $219.85 | Shop at ECS Tuning | |||||
| 06 | Podélný nosník zadní pravý | 1 | 41118152996 | $346.83 | Shop at ECS Tuning | |||||
| 07 | Držák výfuk zadní levý | 1 | 41118108469 | $11.10 | Shop at ECS Tuning | |||||
| 07 | Držák výfuk zadní pravý | 1 | 41118108470 | $11.10 | Shop at ECS Tuning | |||||
| 08 | Příčný držák | 1 | 41118108467 | $243.23 | Shop at ECS Tuning | |||||
| 09 | Držák | 1 | 41118108463 | $594.27 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Díly podlahy zadní?
- This technical diagram illustrates the Díly podlahy zadní within the Karoserie plechové díly group for the 8 Series E31 850Ci produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Pružné ložisko (Part #41118108468).
- Which models use the hardware listed in this Díly podlahy zadní?
- The hardware and components featured in the Díly podlahy zadní are specific to the 8 Series E31 850Ci produced during 1991. These technical specifications ensure that parts like the Pružné ložisko (41118108468) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Díly podlahy zadní assembly?
- Each item in the Díly podlahy zadní corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Pružné ložisko by locating its position on the schematic, which then links to the official BMW part number 41118108468 for the Karoserie plechové díly section.
