Boční stěna vpředu for BMW 3 Series E46 320Ci (2006)
This Boční stěna vpředu technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boční stěna přední levá | 1 | 03/2003 | 41347065263 | $317.44 | Shop at ECS Tuning | ||||
| 01 | Boční stěna přední pravá | 1 | 03/2003 | 41347065264 | $317.44 | Shop at ECS Tuning | ||||
| 02 | Šroub Torx | ISA ST6,3X21 | 10 | 41358203482 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub na plech s podložkou | ST-6,3X22 | 6 | 07119901515 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub na plech s podložkou | ST-6,3X13 | 2 | 07143421225 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Matice na plech | ST 6,3 - 9 | 6 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Prestol klec | ST4,8-2 | 6 | 07129904323 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub na plech | ST4,8X16-ZNS3 | 16 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub na plech s podložkou | ST4,8X16MM | 25 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||

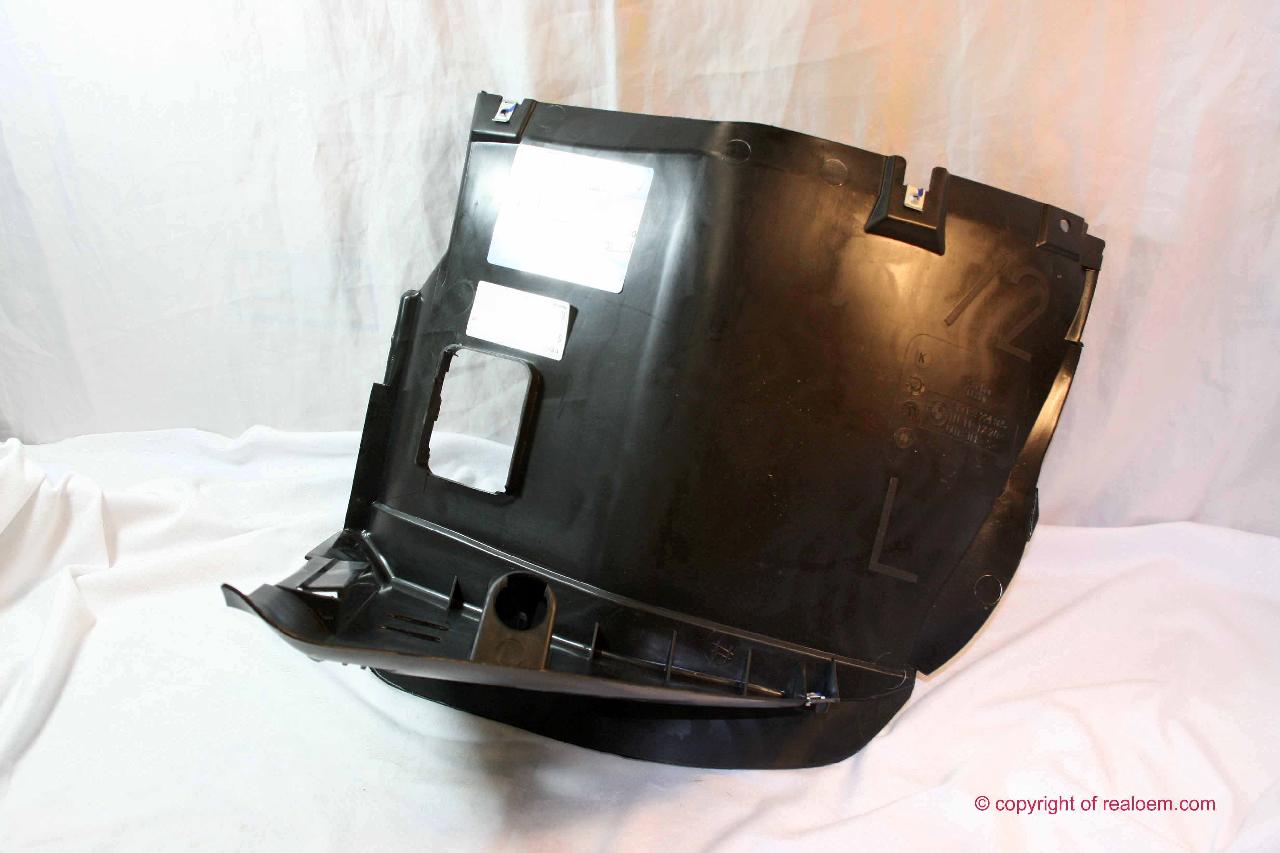

| 08 | Kryt levý | 1 | 51718224985 | $45.57 | Shop at ECS Tuning | |||||

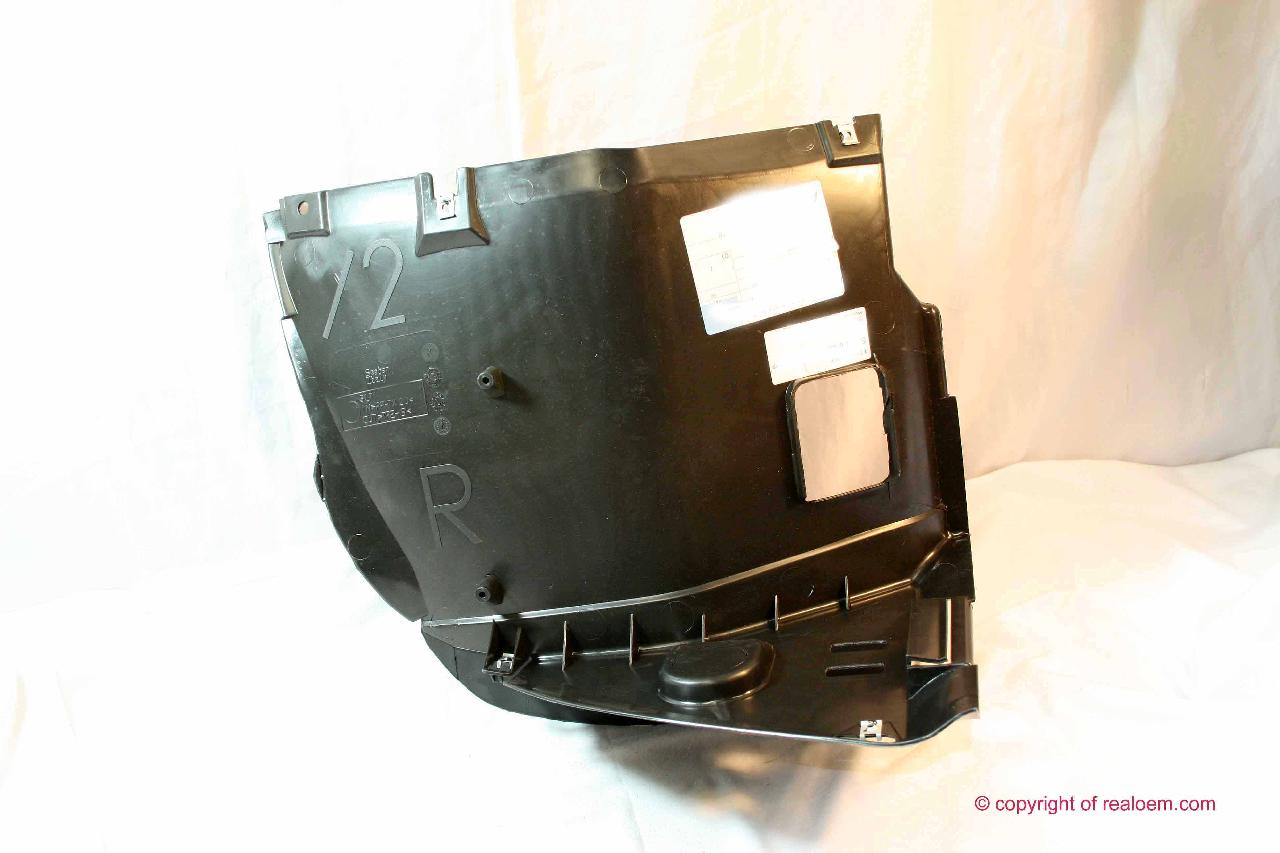

| 08 | Kryt pravý | 1 | 51718224986 | $45.57 | Shop at ECS Tuning | |||||
| 09 | Víko pravé | 1 | 51718243812 | $3.62 | Shop at ECS Tuning | |||||
| 10 | Matice na plech | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Kryt podběh kola přední levý | 1 | 09/1999 | 51718268345 | $64.87 | Shop at ECS Tuning | ||||
| 11 | Kryt podběh kola přední pravý | 1 | 09/1999 | 51718268346 | $64.87 | Shop at ECS Tuning | ||||
| 12 | Rozpěrná matice | TS 4,2 - TS 4,8 | 10 | 51718242741 | $0.32 | Shop at ECS Tuning | ||||
| 13 | Svorka | 1 | 51717195796 | $1.44 | Shop at ECS Tuning | |||||
| 14 | Šestihranná matice s nákružkem | 2 | 07147154227 | $0.62 | Shop at ECS Tuning | |||||
| 15 | Rozpěrný nýt | 6 | 51161881149 | $0.20 | Shop at ECS Tuning |
