Dveře přední for BMW 1502-2002tii 2002 (1971)

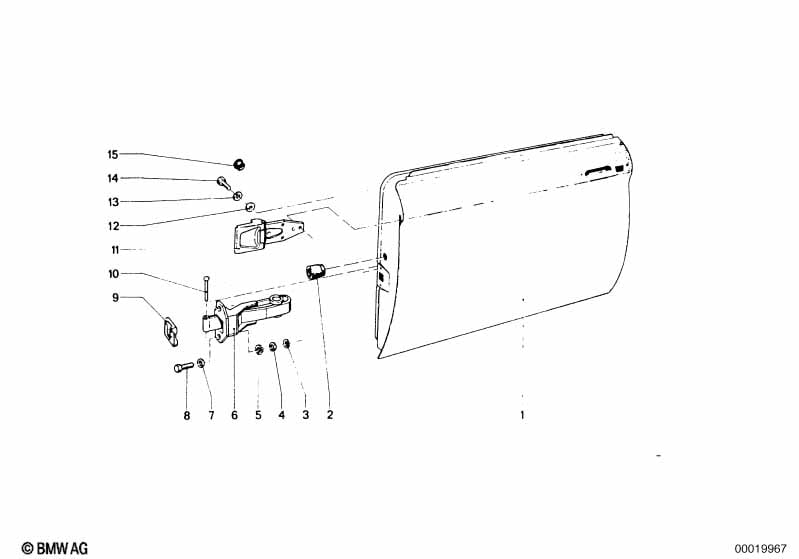

This Dveře přední technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dveře levé | 1 | 03/1966 | 07/1977 | 41511841045 | $577.57 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Dveře pravé | 1 | 03/1966 | 07/1977 | 41511841046 | $576.69 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Doraz | 2 | 51216041760 | $3.27 | Shop at ECS Tuning | |||||
| 06 | Dveřní brzda | 2 | 51210301601 | $133.43 | Shop at ECS Tuning | |||||
| 07 | Podložka | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M6X20-8.8-ZNS | 4 | 07119913016 | $0.60 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Pryžový doraz | 2 | 51216750058 | $1.79 | Shop at ECS Tuning | |||||
| 10 | Nýt | 2 | 51216650054 | $1.46 | Shop at ECS Tuning | |||||
| 11 | Závěs | 4 | 41516450000 | $34.59 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Podložka | A8,4X25 | 12 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Pružný kroužek | B8 | 12 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Šestihranný šroub | M8X16-10.9-PHR | 12 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Zátka | 4 | 51711808104 | $1.54 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
