Karoserie skelet for BMW 3 Series E46 318ti (2004)

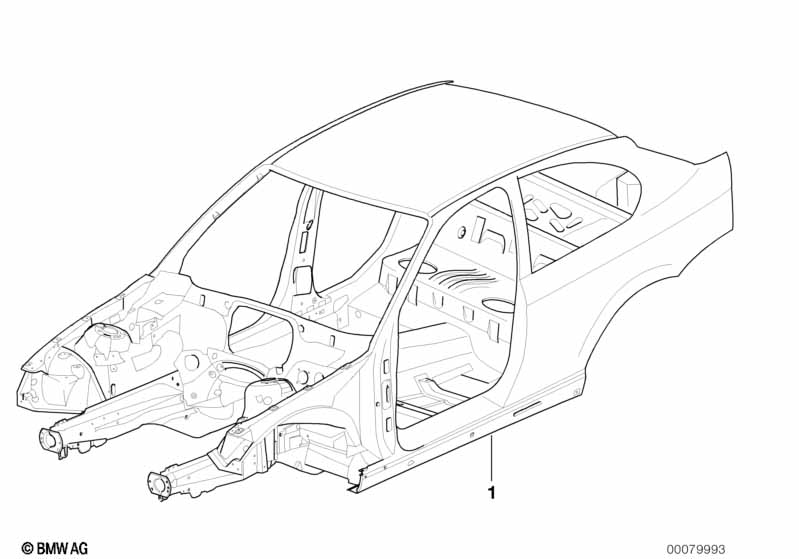

This Karoserie skelet technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Karoserie skelet | BASIS | 1 | 41007013043 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Karoserie skelet posuv. a zved. střecha | BASIS | 1 | 41007016429 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318ti Karoserie skelet?
- This technical diagram illustrates the Karoserie skelet within the Karoserie plechové díly group for the 3 Series E46 318ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Karoserie skelet (Part #41007013043).
- Which models use the hardware listed in this Karoserie skelet?
- The hardware and components featured in the Karoserie skelet are specific to the 3 Series E46 318ti produced during 2004. These technical specifications ensure that parts like the Karoserie skelet (41007013043) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Karoserie skelet assembly?
- Each item in the Karoserie skelet corresponds to the numbered list below the illustration. For the 3 Series E46 318ti, you can identify the Karoserie skelet by locating its position on the schematic, which then links to the official BMW part number 41007013043 for the Karoserie plechové díly section.
