Plnicí klapka for BMW 1 Series E87 LCI 130i (2011)

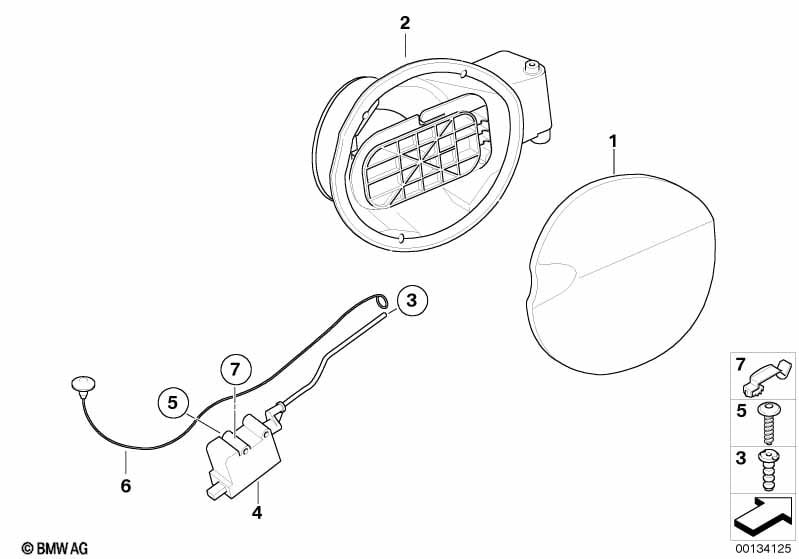

This Plnicí klapka technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 130i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plnicí klapka | 1 | 51177060691 | Shop at ECS Tuning | ||||||
| 02 | Plnicí konev | 1 | 51177069449 | Shop at ECS Tuning | ||||||
| 03 | Pryžová průchodka | 1 | 51257075026 | $3.48 | Shop at ECS Tuning | |||||
| 04 | Servopohon plnicí klapka | 1 | 03/2007 | 67116985879 | Shop at ECS Tuning | |||||
| 05 | Šroub Torx pro plast | L=16MM | 2 | 07146958583 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Nouzové ovládání | 1 | 51257131748 | $3.57 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 130i Plnicí klapka?
- This technical diagram illustrates the Plnicí klapka within the Karoserie plechové díly group for the 1 Series E87 LCI 130i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Plnicí klapka (Part #51177060691).
- Which models use the hardware listed in this Plnicí klapka?
- The hardware and components featured in the Plnicí klapka are specific to the 1 Series E87 LCI 130i produced during 2011. These technical specifications ensure that parts like the Plnicí klapka (51177060691) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Plnicí klapka assembly?
- Each item in the Plnicí klapka corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 130i, you can identify the Plnicí klapka by locating its position on the schematic, which then links to the official BMW part number 51177060691 for the Karoserie plechové díly section.
