Čelní stěna jednotlivé díly for BMW MINI Paceman R61 Cooper

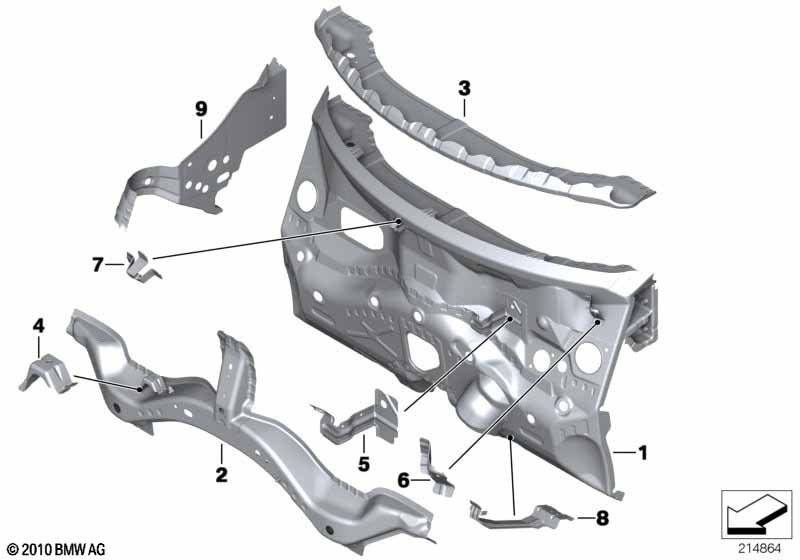

This Čelní stěna jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Čelní stěna | 1 | 41009806249 | +core | Shop at ECS Tuning | |||||
| 02 | Opěrný držák čelní stěna | 1 | 41009806251 | Shop at ECS Tuning | ||||||
| 03 | Příčný držák čelní stěna | 1 | 41009804698 | Shop at ECS Tuning | ||||||
| 04 | Držák akumulátoru | 1 | 41009805440 | Shop at ECS Tuning | ||||||
| 05 | Držák motor stěračů | 1 | 41009805442 | Shop at ECS Tuning | ||||||
| 06 | Držák stěračů vnější | 1 | 41009805444 | Shop at ECS Tuning | ||||||
| 07 | Držák stěračů střední | 1 | 41009805446 | Shop at ECS Tuning | ||||||
| 08 | Držák modul akcelerátoru | 1 | 41009805403 | Shop at ECS Tuning | ||||||
| 09 | Opěrný držák podběh kola vnitřní levý | 1 | 41009804699 | Shop at ECS Tuning | ||||||
| 09 | Opěrný držák podběh kola vnitřní pravý | 1 | 41009804700 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
