Splitdoor for BMW MINI Clubman F54 One

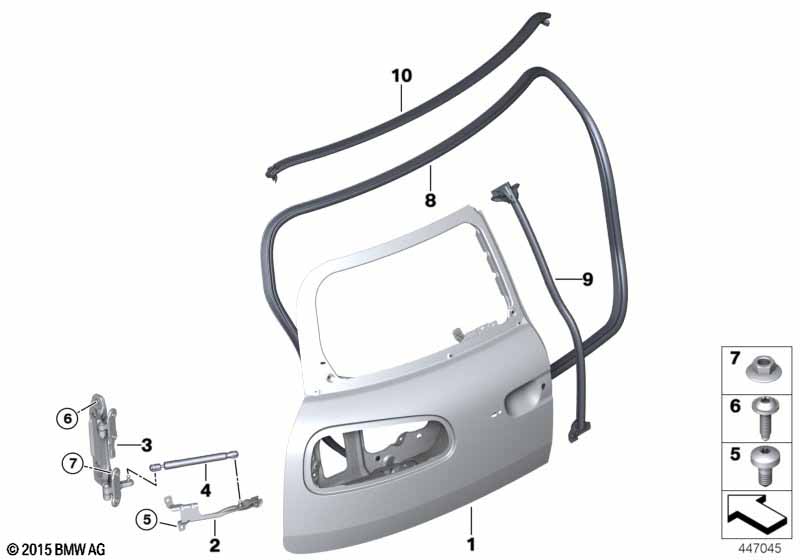

This Splitdoor technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splitdoor vlevo | 1 | 41007411613 | Shop at ECS Tuning | ||||||
| 01 | Splitdoor vpravo | 1 | 41007411614 | Shop at ECS Tuning | ||||||
| 02 | Výztuha konzola plynová vzpěra vlevo | 1 | 51247370327 | Shop at ECS Tuning | ||||||
| 02 | Výztuha konzola plynová vzpěra vpravo | 1 | 51247370328 | Shop at ECS Tuning | ||||||
| 03 | Závěs Splitdoor levý | 1 | 41007411611 | NoS | Shop at ECS Tuning | |||||
| 03 | Závěs Splitdoor pravý | 1 | 41007411612 | Shop at ECS Tuning | ||||||
| 04 | Plynová vzpěra | 2 | 51247348917 | Shop at ECS Tuning | ||||||
| 05 | Šroub Torx | ISA M8X19,5 | 4 | 07147153762 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Šroub s čočkovitou hlavou | M10X30 | 4 | 07129907973 | Shop at ECS Tuning | |||||
| 07 | Šestihranná matice s přírubou | M8-10 ZNS3 | 4 | 31316771889 | $0.55 | Shop at ECS Tuning | ||||
| 08 | Ochrana hrany zadní výklopné dveře | 1 | 51767465031 | Shop at ECS Tuning | ||||||
| 09 | Těsnění spár | 1 | 51767344214 | Shop at ECS Tuning | ||||||
| 10 | Těsnění Splitdoor | 1 | 51337352251 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Díl není centrálně skladován.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 One Splitdoor?
- This technical diagram illustrates the Splitdoor within the Karoserie plechové díly group for the MINI Clubman F54 One. It provides a detailed exploded view of the components, identifying key parts such as the Splitdoor vlevo (Part #41007411613).
- Which models use the hardware listed in this Splitdoor?
- The hardware and components featured in the Splitdoor are specific to the MINI Clubman F54 One. These technical specifications ensure that parts like the Splitdoor vlevo (41007411613) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Splitdoor assembly?
- Each item in the Splitdoor corresponds to the numbered list below the illustration. For the MINI Clubman F54 One, you can identify the Splitdoor vlevo by locating its position on the schematic, which then links to the official BMW part number 41007411613 for the Karoserie plechové díly section.
