Boční výztuha for BMW 5 Series G31 Touring 530d (2020)

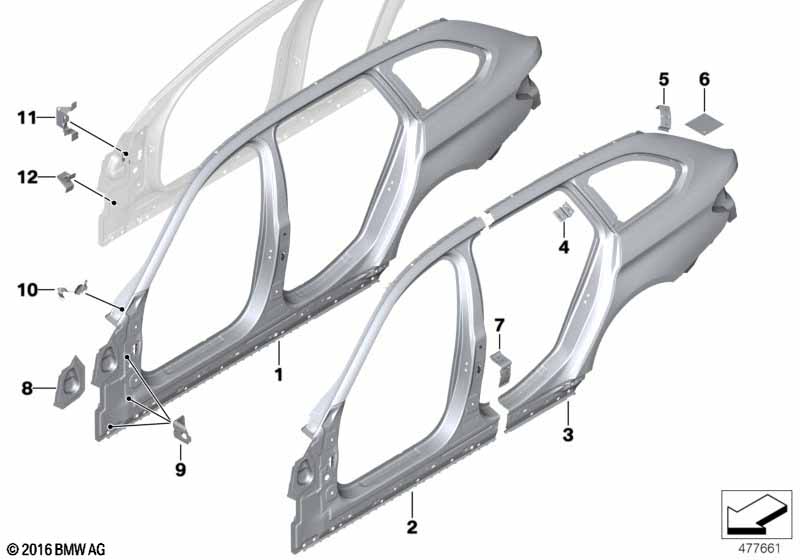

This Boční výztuha technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boční výztuha levá | 1 | 41007437439 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| 01 | Boční výztuha pravá | 1 | 41007437440 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| -- | Polohovací pomůcka T čep | 1 | 41212460156 | Shop at ECS Tuning | ||||||
| -- | Svařitelný čep T | L=5,4MM | 20 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | A-sloupek vnější levý | 1 | 41007470519 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| 02 | A-sloupek vnější pravý | 1 | 41007470520 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| -- | Polohovací pomůcka T čep | 1 | 41212460156 | Shop at ECS Tuning | ||||||
| -- | Svařitelný čep T | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 03 | Boční stěna zadní levá | 1 | 41007437523 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| -- | Slepý nýt N3 | 10 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Šroub | SF PLUS M5X15 | 4 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Ochrana dutin-odstraňovač vosku | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Vysékavací nýt | N5 | 7 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Vysékavací nýt | N4 | 41 | 83192158080 | $0.39 | UKONČENO | Shop at ECS Tuning | |||
| -- | Lepidlo na karoserie K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Polohovací pomůcka T čep | 1 | 41212460156 | Shop at ECS Tuning | ||||||
| -- | Těsnicí hmota D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Lepidlo na karoserie K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Čistič R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Plastová uzavřená matice s podložkou | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastová matice čep s hrubým závitem | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Výztužný plech sloupek C levý | 1 | 41007437601 | Shop at ECS Tuning | ||||||
| -- | Výztužný plech práh levý | 1 | 41007437605 | Shop at ECS Tuning | ||||||
| -- | Výztužný plech sloupek D levý | 1 | 41007437609 | Shop at ECS Tuning | ||||||
| -- | Těsnění zadní výklopné dveře | 1 | 51767441468 | Shop at ECS Tuning | ||||||
| -- | Svařitelný čep T | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 03 | Boční stěna zadní pravá | 1 | 41007437524 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| -- | Slepý nýt N3 | 10 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Šroub | SF PLUS M5X15 | 4 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Ochrana dutin-odstraňovač vosku | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Vysékavací nýt | N5 | 7 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Vysékavací nýt | N4 | 41 | 83192158080 | $0.39 | UKONČENO | Shop at ECS Tuning | |||
| -- | Lepidlo na karoserie K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Polohovací pomůcka T čep | 1 | 41212460156 | Shop at ECS Tuning | ||||||
| -- | Těsnicí hmota D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Lepidlo na karoserie K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Čistič R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Plastová uzavřená matice s podložkou | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastová matice čep s hrubým závitem | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Výztužný plech sloupek C pravý | 1 | 41007437602 | Shop at ECS Tuning | ||||||
| -- | Výztužný plech práh pravý | 1 | 41007437606 | Shop at ECS Tuning | ||||||
| -- | Výztužný plech sloupek D pravý | 1 | 41007437610 | Shop at ECS Tuning | ||||||
| -- | Těsnění zadní výklopné dveře | 1 | 51767441468 | Shop at ECS Tuning | ||||||
| -- | Svařitelný čep T | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 04 | Výztužný plech sloupek C levý | 1 | 41007437601 | Shop at ECS Tuning | ||||||
| 04 | Výztužný plech sloupek C pravý | 1 | 41007437602 | Shop at ECS Tuning | ||||||
| 05 | Výztužný plech sloupek D levý | 1 | 41007437609 | Shop at ECS Tuning | ||||||
| 05 | Výztužný plech sloupek D pravý | 1 | 41007437610 | Shop at ECS Tuning | ||||||
| 06 | Výztužný plech univerzální | 2 | 41217275563 | Shop at ECS Tuning | ||||||
| 07 | Výztužný plech práh levý | 1 | 41007437605 | Shop at ECS Tuning | ||||||
| 07 | Výztužný plech práh pravý | 1 | 41007437606 | Shop at ECS Tuning | ||||||
| 08 | Kryt A-sloupek levý | 1 | 41007437513 | Shop at ECS Tuning | ||||||
| 09 | Držák boční stěna A-sloupek | 6 | 41009624949 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| -- | Slepý nýt N3 | 12 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Lepidlo na karoserie K5 | 50 ML | 6 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 6 | 83192211217 | Shop at ECS Tuning | |||||
| 10 | Držák boční stěna horní levý | 1 | 41007437507 | Shop at ECS Tuning | ||||||
| 10 | Držák boční stěna horní pravý | 1 | 41007437508 | Shop at ECS Tuning | ||||||
| 11 | Držák nádoba voda na mytí horní | 1 | 41007437511 | Shop at ECS Tuning | ||||||
| 12 | Držák nádoba voda na mytí dolní | 1 | 41007437512 | Shop at ECS Tuning | ||||||
