Podběh kola/držák motoru for BMW 2 Series U06 Active Tourer 218d (2025)

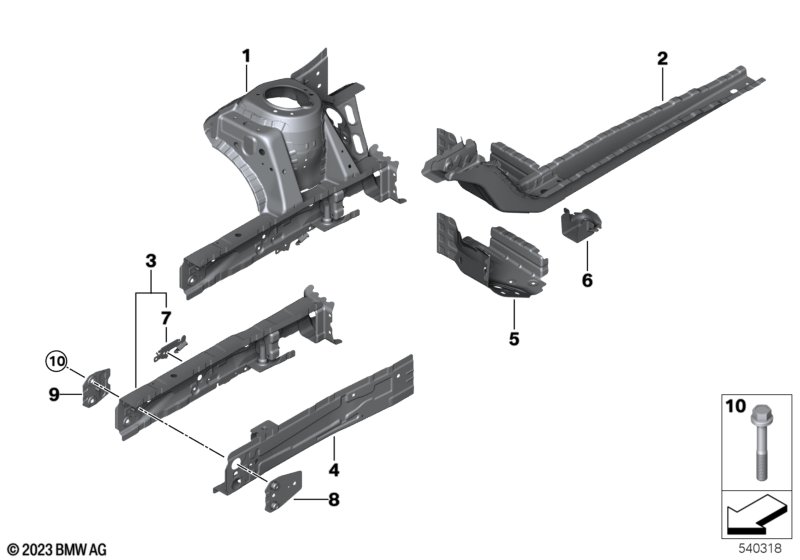

This Podběh kola/držák motoru technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pružná vzpěra přední levá | 1 | 41007427781 | Shop at ECS Tuning | ||||||
| 01 | Pružná vzpěra přední pravá | 1 | 41007427782 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| -- | Ochranná fólie čísla podvozku | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| Při objednávce jsou nutné: - VIN kód vozidla |
||||||||||
| 01 | Pružná vzpěra před.pr.s číslem podvozku | 1 | 41002406072 | Shop at ECS Tuning | ||||||
| Oprava nutná | ||||||||||
| -- | Ochranná fólie čísla podvozku | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| 02 | Držák motoru zadní levý | 1 | 41007386991 | Shop at ECS Tuning | ||||||
| 02 | Držák motoru zadní pravý | 1 | 41007386992 | Shop at ECS Tuning | ||||||
| 03 | Držák motoru vnější levý | 1 | 41007386987 | Shop at ECS Tuning | ||||||
| 03 | Držák motoru vnější pravý | 1 | 41007386988 | Shop at ECS Tuning | ||||||
| 04 | Držák motoru vnitřní levý | 1 | 41007426415 | Shop at ECS Tuning | ||||||
| 04 | Rám motoru vnitřní vpravo | 1 | 41007426416 | Shop at ECS Tuning | ||||||
| 05 | Propojení podběh kola/vstup levý | 1 | 41007360135 | Shop at ECS Tuning | ||||||
| 05 | Propojení podběh kola/vstup pravý | 1 | 41007360136 | Shop at ECS Tuning | ||||||
| 07 | Držák brzdová hadice levý | 1 | 41007386989 | Shop at ECS Tuning | ||||||
| 07 | Držák brzdová hadice pravý | 1 | 41007386990 | Shop at ECS Tuning | ||||||
| 08 | Maticová deska Y-Verschraubung | 1 | 41007421336 | Shop at ECS Tuning | ||||||
| 09 | Šroubová deska Y-Verschraubung | 1 | 41007286507 | Shop at ECS Tuning | ||||||
| 10 | Šestihranný šroub s podložkou | M12X1,5X80 | 4 | 07147411870 | Shop at ECS Tuning | |||||
