Střecha for BMW 2 Series U06 Active Tourer 220d (2025)

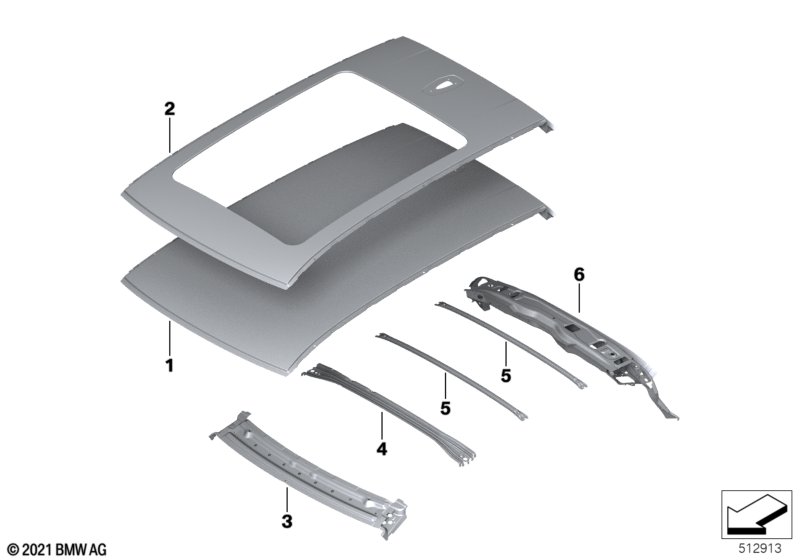

This Střecha technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Panoramatická střecha elektrická |
S402A=Ne |
|||||||||
| 01 | Vnější potah střechy | 1 | 41009630390 | Shop at ECS Tuning | ||||||
| Pro vozidla s Panoramatická střecha elektrická |
S402A=Ano |
|||||||||
| 02 | Vnější potah střechy panoramat. střecha | 1 | 41009854874 | Shop at ECS Tuning | ||||||
| 03 | Kryt přívodu vzduchu | 1 | 41009854870 | NoS | Shop at ECS Tuning | |||||
| 04 | Střešní oblouk přední | 1 | 41009630389 | NoS | Shop at ECS Tuning | |||||
| 05 | Střešní oblouk zadní | 2 | 41009627654 | NoS | Shop at ECS Tuning | |||||
| 06 | Rám zadního okna | 1 | 41009854872 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
