Boční stěna/výplň zadních dveří for BMW 7 Series G70 740d (2022)

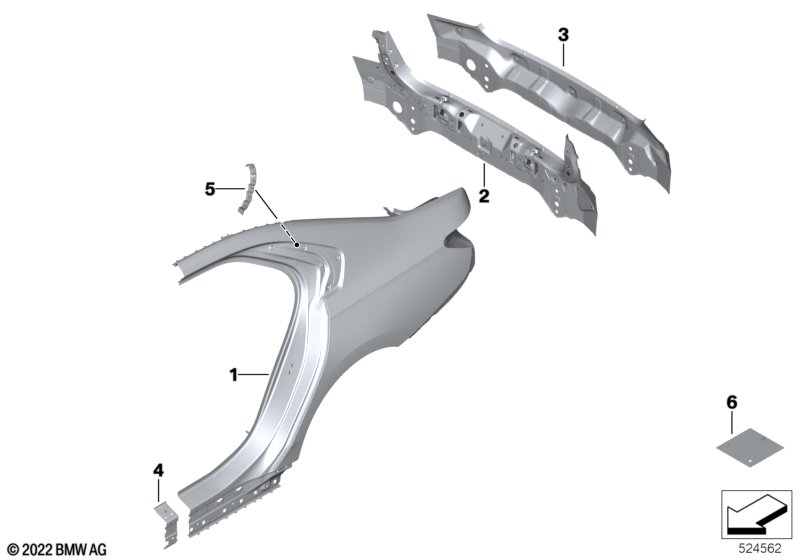

This Boční stěna/výplň zadních dveří technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.

Boční stěna/výplň zadních dveří
Č. Popis Doplnění Poč.  Od   Do  Číslo dílu Cena Notes
01 Boční stěna zadní levá 1 41215A37B71 Shop at ECS Tuning
01 Boční stěna zadní pravá 1 41215A37B72 Shop at ECS Tuning
02 Výplň zadních dveří úplná 1 41135A37AA8 Shop at ECS Tuning
03 Výplň zadních dveří vnější potah 1 41345A37AA9 Shop at ECS Tuning
04 Výztužný plech práh levý 1 41219630319 Shop at ECS Tuning
04 Výztužný plech práh pravý 1 41219630320 Shop at ECS Tuning
05 Výztužný plech sloupek C levý 1 41009630315 Shop at ECS Tuning
05 Výztužný plech sloupek C pravý 1 41009630316 Shop at ECS Tuning
06 Výztužný plech univerzální 1 41217275563 Shop at ECS Tuning

See Also

Frequently Asked Questions

What assembly is shown in the BMW 7 Series G70 740d Boční stěna/výplň zadních dveří?
This technical diagram illustrates the Boční stěna/výplň zadních dveří within the Karoserie plechové díly group for the 7 Series G70 740d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Boční stěna zadní levá (Part #41215A37B71).
Which models use the hardware listed in this Boční stěna/výplň zadních dveří?
The hardware and components featured in the Boční stěna/výplň zadních dveří are specific to the 7 Series G70 740d produced during 2022. These technical specifications ensure that parts like the Boční stěna zadní levá (41215A37B71) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Boční stěna/výplň zadních dveří assembly?
Each item in the Boční stěna/výplň zadních dveří corresponds to the numbered list below the illustration. For the 7 Series G70 740d, you can identify the Boční stěna zadní levá by locating its position on the schematic, which then links to the official BMW part number 41215A37B71 for the Karoserie plechové díly section.
