Karoserie skelet for BMW 5 Series G61 Touring 530e (2025)

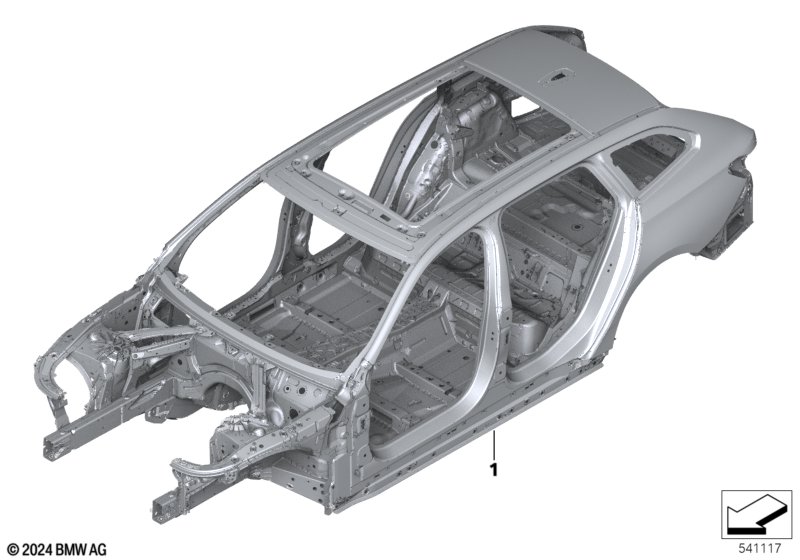

This Karoserie skelet technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Panoramatická střecha elektrická |
S402A=Ano |
|||||||||
| 01 | Kostra karoserie bez čísla podvozku | PANORAM.SUNROOF | 1 | 41009636573 | NoS | Shop at ECS Tuning | ||||
| 01 | Kostra karoserie s číslem podvozku | PANORAM.SUNROOF | 1 | 41009641564 | NoS | Shop at ECS Tuning | ||||
| Pro vozidla s Panoramatická střecha elektrická |
S402A=Ne |
|||||||||
| 01 | Kostra karoserie bez čísla podvozku | PHEV | 1 | 41009636572 | NoS | Shop at ECS Tuning | ||||
| 01 | Kostra karoserie s číslem podvozku | PHEV | 1 | 41009641563 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
