Stupačka for BMW R45-R65LS..78-85 R45 (1978)
This Stupačka technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stupačka pravá | 1 | 09/1980 | 46711236309 | $79.12 | +core | Shop at ECS Tuning | |||
| 01 | Stupačka levá | 1 | 09/1980 | 46711238450 | $79.12 | UKONČENO, +core | Shop at ECS Tuning | |||
| 02 | Pryž pro stupačku | 2 | 09/1980 | 46711234660 | $23.26 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub | M12X70 | 2 | 09/1980 | 07119912859 | $1.86 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Podložka | A13/HV-ZNS | 6 | 09/1980 | 07119901766 | $0.30 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Okno | 12-300 HV-ZNS3 | 6 | 09/1980 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 05 | Šestihranná matice samojisticí | M12-10-ZNS3 | 2 | 09/1980 | 07119905753 | $1.64 | Shop at ECS Tuning | |||
| 05 | Šestihranná matice samojisticí | M12 | 2 | 09/1980 | 07129922729 | $4.11 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Stupačka | RUNDE VARIANTE | 2 | 46711230477 | $49.88 | Shop at ECS Tuning | ||||
| Vyměnitelné jen v páru | ||||||||||
| 06 | Stupačka | ECKIGE VARIANTE | 2 | 46711234661 | $93.88 | +core | Shop at ECS Tuning | |||
| 07 | Pružná podložka | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||

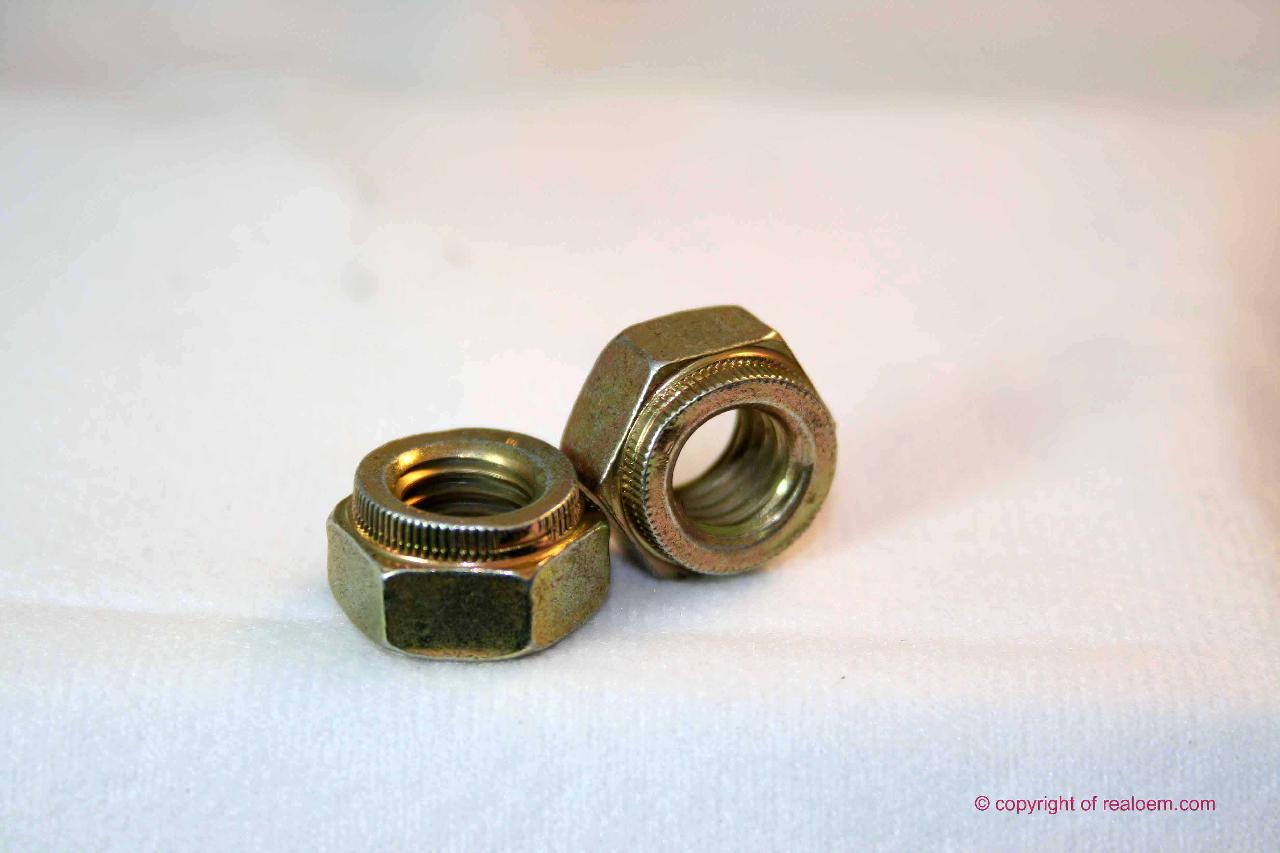

| 08 | Šestihranná matice samojisticí | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Šestihranná matice | M12X1,5 | 4 | 07119922940 | $1.29 | Shop at ECS Tuning | ||||
| 10 | Pouzdro | 11X22X6 | 4 | 46712311727 | $1.68 | Shop at ECS Tuning | ||||
| 11 | Čep | M12X1,5 / 306MM | 2 | 46711230762 | $34.41 | Shop at ECS Tuning | ||||
| 12 | Pružná podložka | B12-ZN | 4 | 07119932132 | $0.25 | UKONČENO | Shop at ECS Tuning | |||
| 16 | Podložka | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 17 | Šestihranná matice samojisticí | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
