Zasklení for BMW 3 Series E30 318i (1993)

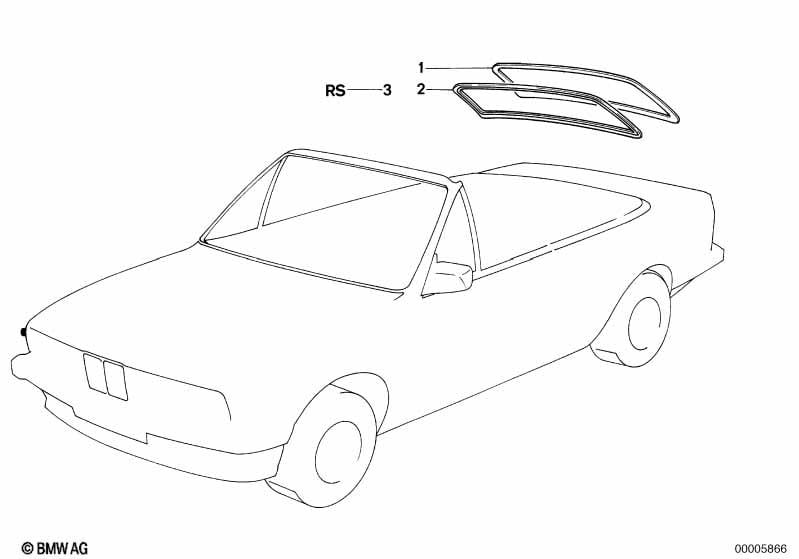

This Zasklení technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní sklo zelené | 1 | 51311942920 | $397.36 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Kryt vnější | 1 | 54211953951 | $116.74 | Shop at ECS Tuning | |||||
| 03 | Opravná sada sklo, studená, 1 hod. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Oprava nutná | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Zasklení?
- This technical diagram illustrates the Zasklení within the Výbava vozidla group for the 3 Series E30 318i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Zadní sklo zelené (Part #51311942920).
- Which models use the hardware listed in this Zasklení?
- The hardware and components featured in the Zasklení are specific to the 3 Series E30 318i produced during 1993. These technical specifications ensure that parts like the Zadní sklo zelené (51311942920) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zasklení assembly?
- Each item in the Zasklení corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Zadní sklo zelené by locating its position on the schematic, which then links to the official BMW part number 51311942920 for the Výbava vozidla section.
