Okenní mechanismus dveří přední for BMW 7 Series E23 735i (1982)

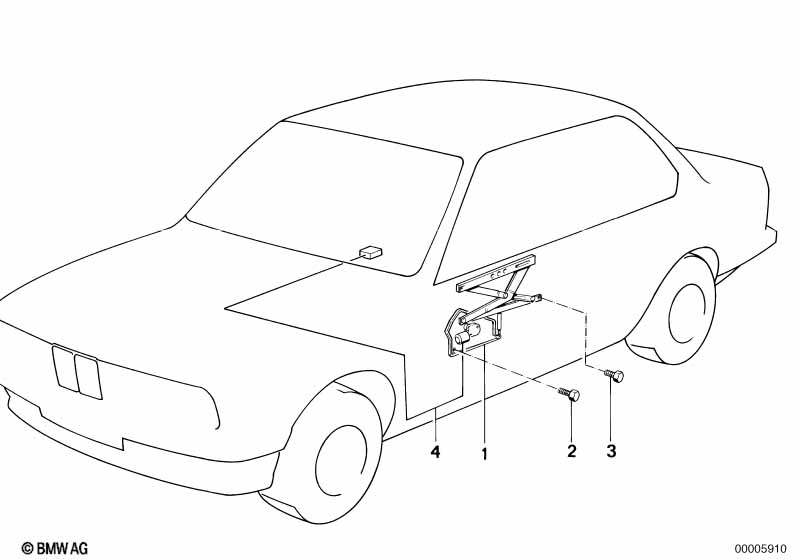

This Okenní mechanismus dveří přední technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Elektrický spouštěč okna přední levý | 1 | 51331935963 | UKONČENO | Shop at ECS Tuning | |||||
| 01 | Elektrický spouštěč okna přední pravý | 1 | 51331935964 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub s podložkou | M6X18-Z3-2 | 8 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub s podložkou | M6X10-Z3-1 | 4 | 07119915058 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Sada kabelů | 1 | 61121377125 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Okenní mechanismus dveří přední?
- This technical diagram illustrates the Okenní mechanismus dveří přední within the Výbava vozidla group for the 7 Series E23 735i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Elektrický spouštěč okna přední levý (Part #51331935963).
- Which models use the hardware listed in this Okenní mechanismus dveří přední?
- The hardware and components featured in the Okenní mechanismus dveří přední are specific to the 7 Series E23 735i produced during 1982. These technical specifications ensure that parts like the Elektrický spouštěč okna přední levý (51331935963) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Okenní mechanismus dveří přední assembly?
- Each item in the Okenní mechanismus dveří přední corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Elektrický spouštěč okna přední levý by locating its position on the schematic, which then links to the official BMW part number 51331935963 for the Výbava vozidla section.
