Vedení okna přední for BMW 7 Series E23 735i (1985)

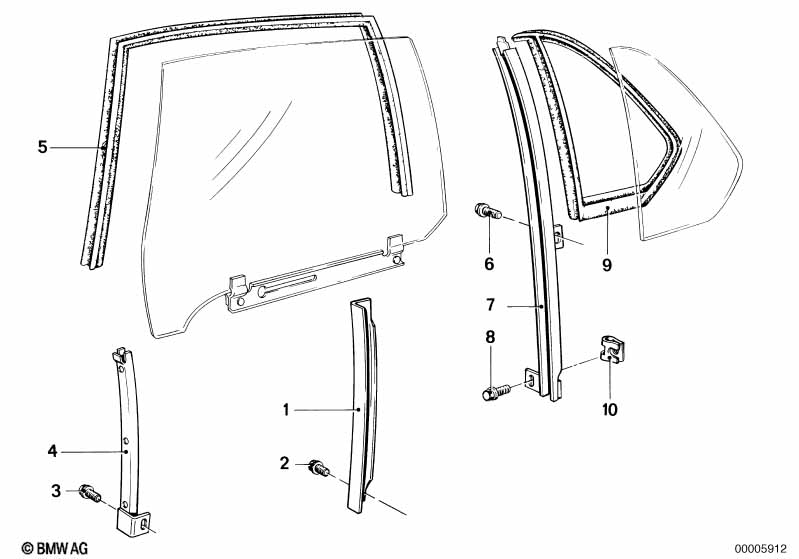

This Vedení okna přední technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vodicí lišta | 2 | 51321846496 | $7.72 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Vodicí lišta | 2 | 51333905663 | Shop at ECS Tuning | ||||||
| 02 | Šestihranný šroub s podložkou | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub s podložkou | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Vodicí lišta přední levá | 1 | 51341850481 | $6.64 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Vodicí lišta přední pravá | 1 | 51341850482 | $6.64 | Shop at ECS Tuning | |||||
| 04 | Vodicí lišta | 1 | 51343905657 | Shop at ECS Tuning | ||||||
| 04 | Vodicí lišta | 1 | 51343905658 | Shop at ECS Tuning | ||||||
| 05 | Vedení okna levé | 1 | 51341921513 | $100.69 | Shop at ECS Tuning | |||||
| 05 | Vedení okna pravé | 1 | 51341921514 | $100.69 | Shop at ECS Tuning | |||||
| 06 | Šestihranný šroub s podložkou | M6X16-Z4-2 | 2 | 07119915024 | $1.89 | Shop at ECS Tuning | ||||
| 07 | Vodicí lišta zadní levá | 1 | 51341886911 | $90.95 | Shop at ECS Tuning | |||||
| 07 | Vodicí lišta zadní pravá | 1 | 51341886912 | $90.95 | Shop at ECS Tuning | |||||
| 08 | Šestihranný šroub s podložkou | M6X16-SB-Z3-2 | 2 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Těsnicí rám levý | 1 | 04/1983 | 51341917797 | $20.57 | Shop at ECS Tuning | ||||
| 09 | Těsnicí rám pravý | 1 | 04/1983 | 51341917798 | $20.57 | Shop at ECS Tuning | ||||
| 10 | Maticový držák | 2 | 51161813920 | $1.45 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
