Okenní mechanismus dveří zadní for BMW 5 Series E28 M535i (1987)

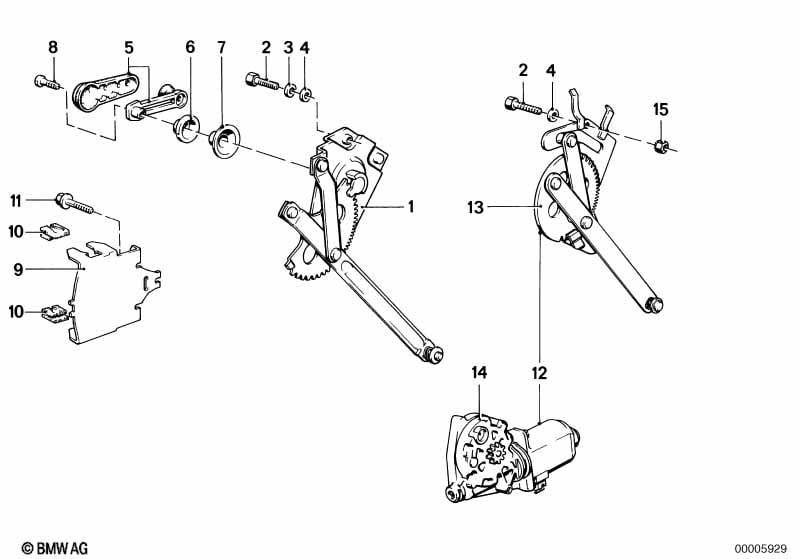

This Okenní mechanismus dveří zadní technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spouštěč okna zadní levý | 1 | 51341809603 | $54.92 | Shop at ECS Tuning | |||||
| 01 | Spouštěč okna zadní pravý | 1 | 51341809604 | $54.92 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub | M6X12-8.8-ZNNIV | X | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 03 | Pružný kroužek | B6 | 6 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Podložka | A6,4-200HV-ZNS3 | X | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Okenní klika | SCHWARZ | 2 | 51321875839 | $34.14 | Shop at ECS Tuning | ||||
| 06 | Opěrná podložka | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 07 | Pouzdro | 2 | 51341886648 | $0.28 | Shop at ECS Tuning | |||||
| 08 | Kuželový šroub | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 09 | Uchycení | 2 | 51321809844 | $5.23 | Shop at ECS Tuning | |||||
| 10 | Kluzná součást | 4 | 51321809881 | $1.30 | Shop at ECS Tuning | |||||
| 11 | Šestihranný šroub s podložkou | M6X18-Z4-2 | 2 | 07119915028 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Elektrický spouštěč okna zadní levý | 1 | 09/1983 | 51351921475 | $465.73 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Elektrický spouštěč okna zadní pravý | 1 | 09/1983 | 51351921476 | $465.73 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Elektrický spouštěč okna zadní levý | 1 | 51351846567 | $161.80 | Shop at ECS Tuning | |||||
| 13 | Elektrický spouštěč okna zadní pravý | 1 | 51351846568 | $218.00 | Shop at ECS Tuning | |||||
| 14 | Plochý motor levý | 1 | 09/1983 | 51351375397 | $259.56 | UKONČENO | Shop at ECS Tuning | |||
| 14 | Plochý motor pravý | 1 | 09/1983 | 51351375398 | $259.56 | Shop at ECS Tuning | ||||
| 15 | Šestihranná matice samojisticí | M6 | 2 | 51417053138 | $0.38 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
