Přední spoiler for BMW 5 Series E28 525i (1987)

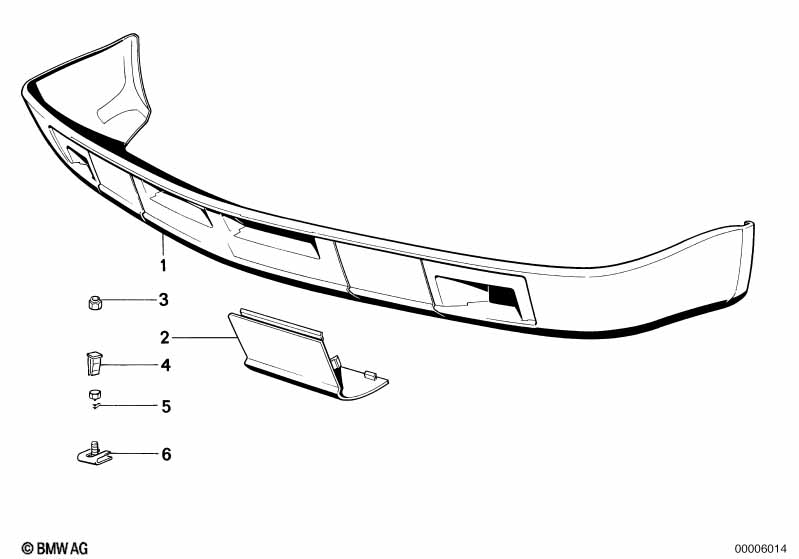

This Přední spoiler technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dodatečná sada přední spoiler | 1 | 09/1984 | 51711932918 | $966.35 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Kryt levý v základní barvě | M5 | 1 | 09/1984 | 51711919943 | $38.09 | Shop at ECS Tuning | |||
| 02 | Kryt pravý | M5 | 1 | 09/1984 | 51711919944 | $38.09 | Shop at ECS Tuning | |||
| 03 | Šestihranná matice s podložkou | M6 | X | 09/1984 | 07147134319 | $1.05 | Shop at ECS Tuning | |||
| 04 | Rozpěrná matice | ST 4.8 WEISS | 2 | 09/1984 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 05 | Šestihranný šroub na plech | ST4,8X16-ZNS3 | 2 | 09/1984 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 06 | Upínací šroub | M6X15 | 4 | 09/1984 | 51711912659 | $2.05 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
