Výplň nárazník zadní for BMW 8 Series E31 850Ci (1994)

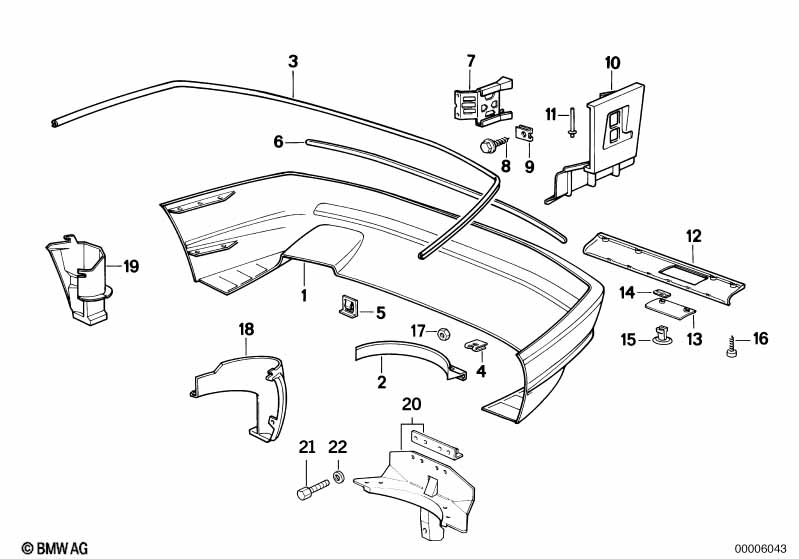

This Výplň nárazník zadní technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výplň | 1 | 51128108173 | $906.57 | Shop at ECS Tuning | |||||
| 01 | Výplň | CODE - UNI | 1 | 51129065032 | UKONČENO | Shop at ECS Tuning | ||||
| Při objednávce uveďte kód barvy | ||||||||||
| 01 | Výplň | CODE - MET. | 1 | 51129065034 | UKONČENO | Shop at ECS Tuning | ||||
| Při objednávce uveďte kód barvy | ||||||||||
| 02 | Kryt | 1 | 51121970904 | $15.00 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Těsnění | 1 | 51121940756 | $23.38 | Shop at ECS Tuning | |||||
| 04 | Matice na plech | ST4,8-9-ZNS3 | X | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Klín | M TECHNIC | X | 51112239702 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Fólie | 1 | 51121940913 | $5.98 | Shop at ECS Tuning | |||||
| 07 | Držák levý | 1 | 51121940747 | $5.67 | Shop at ECS Tuning | |||||
| 07 | Držák pravý | 1 | 51121940748 | $5.67 | Shop at ECS Tuning | |||||
| 08 | Šestihranný šroub, plech | ST6,3X16-R-U2-Z | 6 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Matice na plech | ST6,3-4 ZNS3 | 6 | 07147144276 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Vyztužení levé | 1 | 51121940749 | $21.57 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Vyztužení pravé | 1 | 51121940750 | $21.57 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Nýt | X | 51711936929 | $0.37 | Shop at ECS Tuning | |||||
| 12 | Kryt | 1 | 51128124048 | $202.44 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Klapka | 1 | 51128108579 | $28.96 | Shop at ECS Tuning | |||||
| 12 | Kryt | CODE - UNI | 1 | 51129065036 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| 12 | Kryt | CODE - MET. | 1 | 51129065038 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Klapka | 1 | 51128108579 | $28.96 | Shop at ECS Tuning | |||||
| Při objednávce uveďte kód barvy | ||||||||||
| Pro vozidla s Tažné zařízení |
=Ano |
|||||||||
| 12 | Kryt | 1 | 51128124048 | $202.44 | Shop at ECS Tuning | |||||
| 12 | Kryt | CODE - UNI | 1 | 51129065036 | UKONČENO | Shop at ECS Tuning | ||||
| Při objednávce uveďte kód barvy | ||||||||||
| 12 | Kryt | CODE - MET. | 1 | 51129065038 | UKONČENO | Shop at ECS Tuning | ||||
| Při objednávce uveďte kód barvy | ||||||||||
| 13 | Klapka | 1 | 51128108579 | $28.96 | Shop at ECS Tuning | |||||
| 14 | Deska | 2 | 51128108578 | $0.82 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Uzavírací víko | 2 | 51128118147 | $1.85 | Shop at ECS Tuning | |||||
| 15 | Upínací svorky | 2 | 51711910956 | $1.37 | Shop at ECS Tuning | |||||
| 16 | Samořezný šroub s čočkovou hlavou | ST4,8X16-Z1 | X | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Plastová matice čep s hrubým závitem | M6 | 3 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 18 | Kryt levý | 1 | 51711970267 | $97.73 | Shop at ECS Tuning | |||||
| 19 | Kryt podběh kola zadní pravý | 1 | 16111181087 | $92.35 | UKONČENO | Shop at ECS Tuning | ||||
| 20 | Vlečná konzola | 1 | 72158124627 | $168.20 | Shop at ECS Tuning | |||||
| 21 | Šestihranný šroub | 8 | 32211124046 | $0.98 | Shop at ECS Tuning | |||||
| 22 | Podložka | A10,5X22 | 8 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
