Držák nárazník zadní for BMW 8 Series E31 840i (1996)

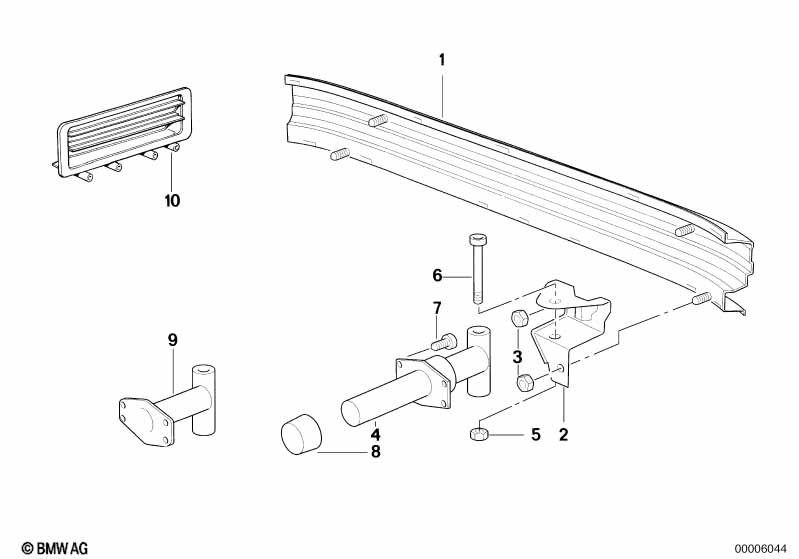

This Držák nárazník zadní technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Držák | 1 | 51128118114 | $632.96 | Shop at ECS Tuning | |||||
| 02 | Držák levý | 1 | 51128108363 | $34.68 | Shop at ECS Tuning | |||||
| 02 | Držák pravý | 1 | 51128108364 | $34.68 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Šestihranná matice | M10 | 4 | 51111852978 | $2.68 | Shop at ECS Tuning | ||||
| 04 | Tlumič nárazů zadní | 2 | 51121940753 | $101.23 | Shop at ECS Tuning | |||||
| 05 | Šestihranná matice samojisticí | M12-10-ZNS3 | 2 | 07119905753 | $1.64 | Shop at ECS Tuning | ||||
| 05 | Šestihranná matice samojisticí | M12 | 2 | 07129922729 | $4.11 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Šroub s válcovou hlavou | M12X85 | 2 | 51128118078 | $2.14 | Shop at ECS Tuning | ||||
| 07 | Šroub s válcovou hlavou s podložkou | M6X16-Z1-8.8 | 4 | 07119902316 | $2.84 | Shop at ECS Tuning | ||||
| 08 | Víčko | 2 | 51121938266 | $0.57 | Shop at ECS Tuning | |||||
| Pro vozidla s Tažné zařízení |
=Ano |
|||||||||
| 09 | Uchycení | 2 | 71601137249 | $107.69 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
