Nárazník zadní for BMW 3 Series E21 320i (1977)

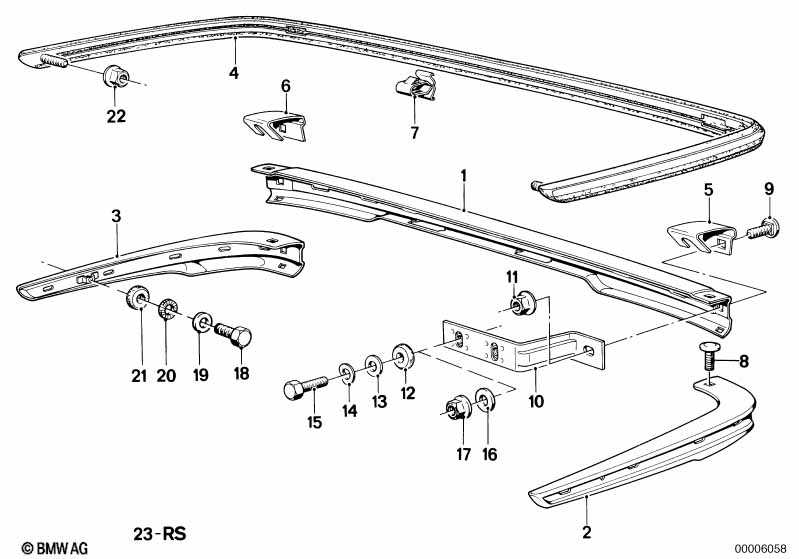

This Nárazník zadní technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nárazník zadní střední | 1 | 51121834166 | $361.83 | Shop at ECS Tuning | |||||
| 02 | Nárazník zadní levý | 1 | 51121835489 | $321.64 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Nárazník zadní pravý | 1 | 51121835490 | $321.64 | Shop at ECS Tuning | |||||
| 04 | Pryžová lišta zadní | 1 | 51121834876 | $93.52 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Clona levá | 1 | 51121834907 | $33.34 | Shop at ECS Tuning | |||||
| 06 | Clona pravá | 1 | 51121834908 | $33.34 | Shop at ECS Tuning | |||||
| 07 | Lištové svorky | X | 51111826894 | $0.55 | Shop at ECS Tuning | |||||
| 09 | Čtyřhranný šroub | M8X16 | 6 | 51121804528 | $0.57 | Shop at ECS Tuning | ||||

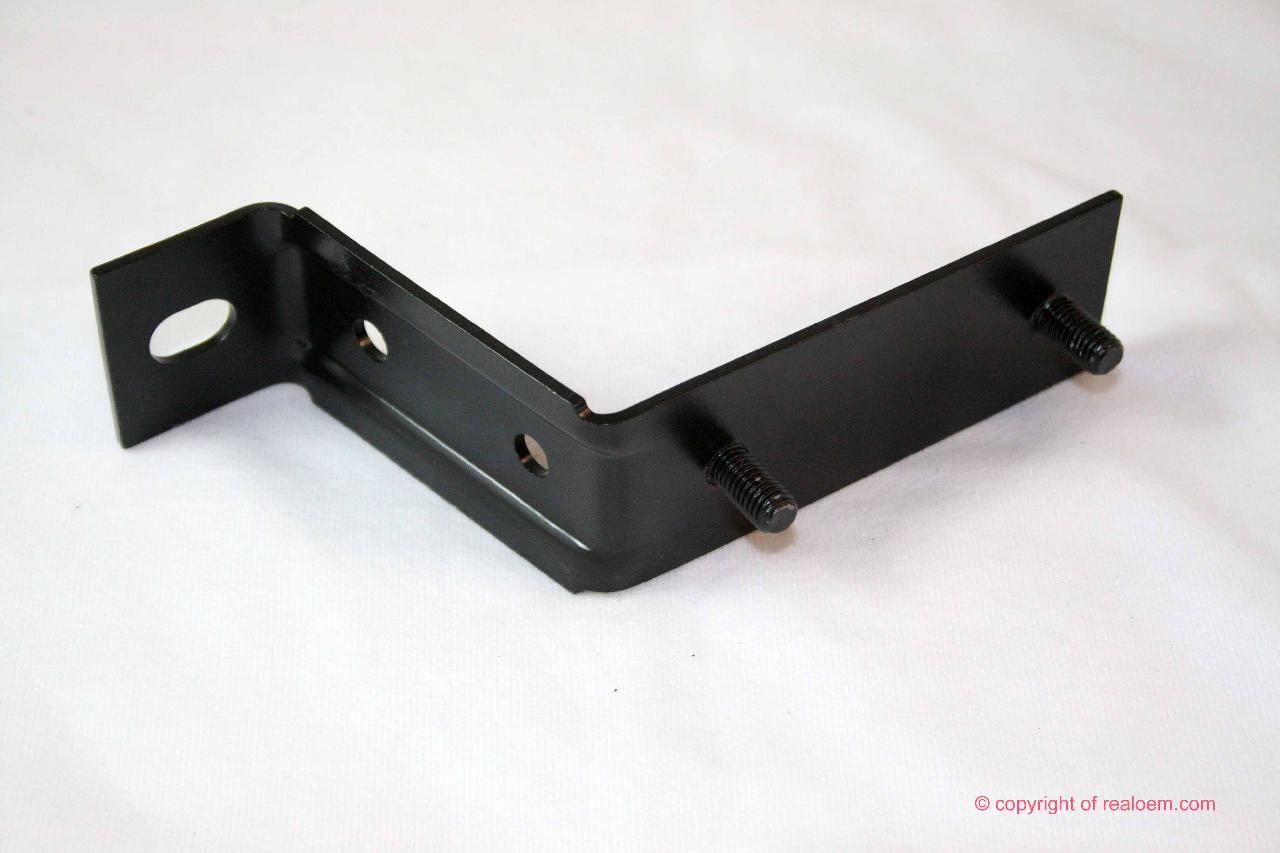

| 10 | Uchycení | 2 | 51121834935 | $16.19 | Shop at ECS Tuning | |||||
| 11 | Šestihranná matice s podložkou | M8 | 4 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Těsnicí kroužek | 4 | 51125670140 | $0.50 | Shop at ECS Tuning | |||||
| 13 | Podložka | 8,4X24X2-ZNS3 | 4 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Pružná podložka | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Šestihranný šroub | M8X25-8.8-ZNNIV | 4 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 15 | Šestihranný šroub | M8X25 | 4 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Podložka | 4 | 51121875848 | $0.65 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Šestihranná matice | M8-8-ZNS3 | 4 | 12/1983 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 17 | Šestihranná matice | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 18 | Šestihranný šroub | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 19 | Podložka | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||

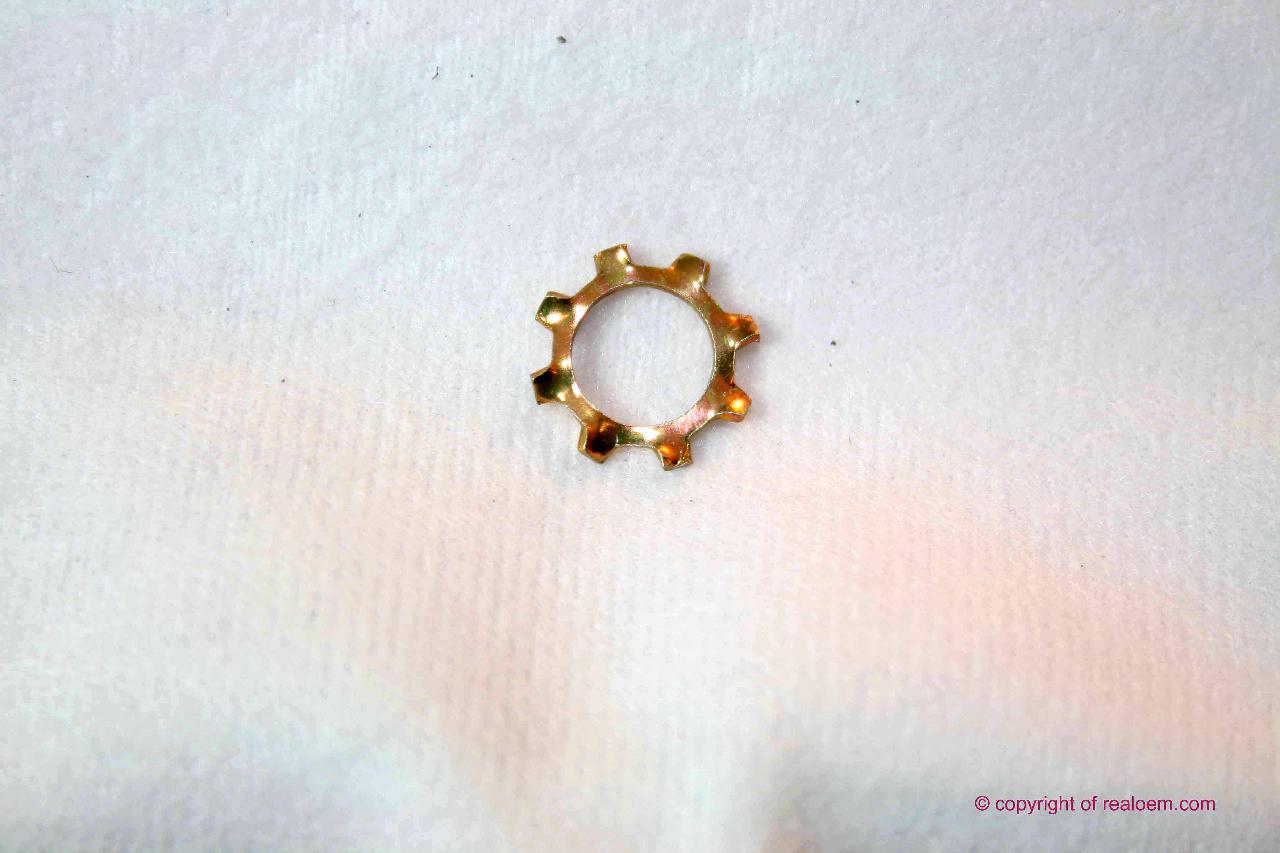

| 20 | Ozubená podložka | A8,2 | 2 | 07119936191 | $0.18 | Shop at ECS Tuning | ||||
| 21 | Pryžový kotouč | 2 | 51125071765 | $1.21 | UKONČENO | Shop at ECS Tuning | ||||
| 22 | Šestihranná matice s podložkou | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 23 | Sada upevňovací díly | 1 | 51129056454 | $16.55 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Nárazník zadní?
- This technical diagram illustrates the Nárazník zadní within the Výbava vozidla group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Nárazník zadní střední (Part #51121834166).
- Which models use the hardware listed in this Nárazník zadní?
- The hardware and components featured in the Nárazník zadní are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Nárazník zadní střední (51121834166) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Nárazník zadní assembly?
- Each item in the Nárazník zadní corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Nárazník zadní střední by locating its position on the schematic, which then links to the official BMW part number 51121834166 for the Výbava vozidla section.
