Ozdobná mřížka for BMW 5 Series E12 528i (1979)

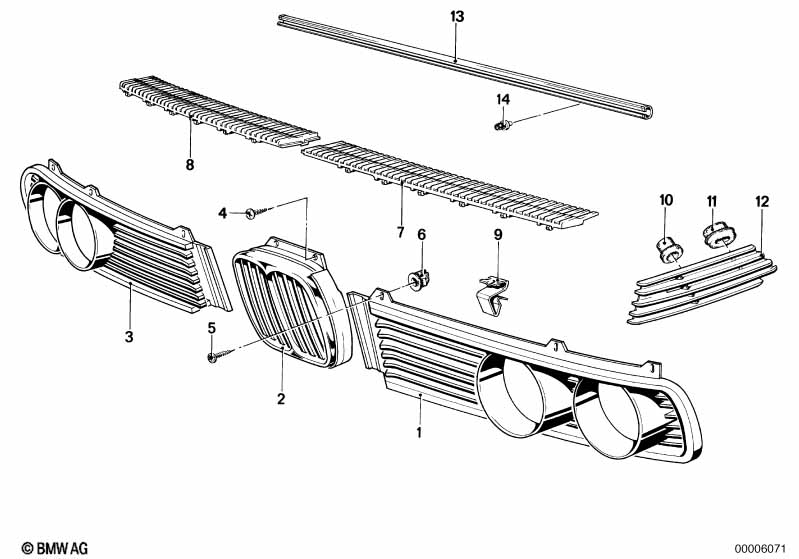

This Ozdobná mřížka technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ozdobná mřížka levá | 1 | 09/1976 | 51131848237 | $142.90 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Ozdobná mřížka střední | 1 | 09/1976 | 51131848104 | $175.00 | Shop at ECS Tuning | ||||
| 03 | Ozdobná mřížka pravá | 1 | 09/1976 | 51131848238 | $142.90 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Samořezný šroub s čočkovou hlavou | ST3,9X19 | 2 | 09/1976 | 07119906744 | $0.37 | Shop at ECS Tuning | |||
| 05 | Samořezný šroub s čočkovou hlavou | ST3,9X13 | X | 09/1976 | 07147202502 | $0.26 | Shop at ECS Tuning | |||
| 06 | Rozpěrná matice | 3,9 | X | 09/1976 | 51135680113 | $0.28 | Shop at ECS Tuning | |||
| 07 | Ozdobná mřížka vstup vzduchu levý | 1 | 09/1976 | 51131848125 | $28.76 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Ozdobná mřížka vstup vzduchu pravý | 1 | 09/1976 | 51131848126 | $28.76 | Shop at ECS Tuning | ||||
| 09 | Svorka | 5 | 09/1976 | 51131819327 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Průchodka | 4 | 09/1976 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| 10 | Průchodka | 4 | 09/1976 | 51141852899 | $1.84 | Shop at ECS Tuning | ||||
| 11 | Tlačítko | 2 | 09/1976 | 51131820141 | $0.31 | Shop at ECS Tuning | ||||
| 12 | Clona výstup vzduchu zadní levý | SCHWARZ | 1 | 09/1976 | 51131817611 | $21.77 | Shop at ECS Tuning | |||
| 12 | Clona výstup vzduchu zadní pravý | SCHWARZ | 1 | 09/1976 | 51131817612 | $21.77 | UKONČENO | Shop at ECS Tuning | ||
| 13 | Ozdobná lišta krycí plech | 1 | 09/1976 | 51131871626 | $79.07 | UKONČENO | Shop at ECS Tuning | |||
| 14 | Svorka | 1 | 09/1976 | 51131858761 | $1.13 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
