Ozdobná mřížka for BMW 7 Series E32 750iLS (1994)

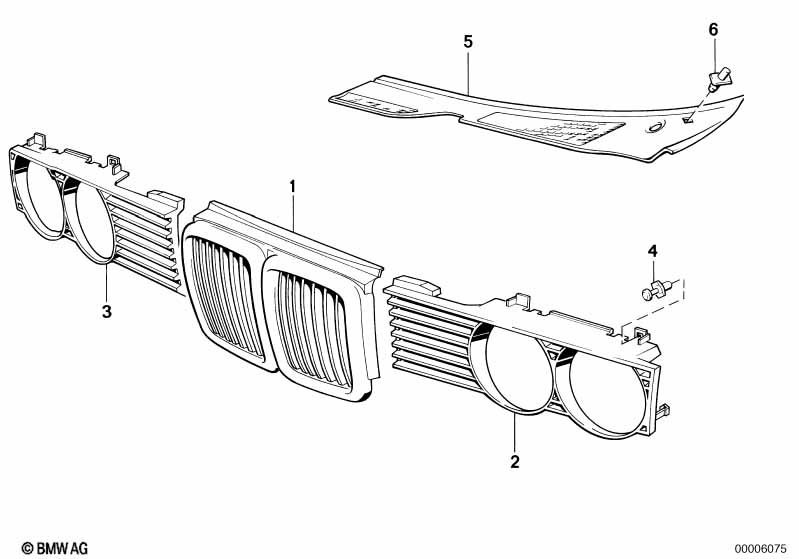

This Ozdobná mřížka technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ozdobná mřížka střední | 1 | 04/1992 | 51138141560 | $481.23 | Shop at ECS Tuning | ||||
| 02 | Ozdobná mřížka levá | 1 | 51131964861 | $115.12 | Shop at ECS Tuning | |||||
| 03 | Ozdobná mřížka pravá | 1 | 51131964862 | $115.12 | Shop at ECS Tuning | |||||
| 04 | Svorka | X | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
| 05 | Ozdobná mřížka vstup vzduchu levý | 1 | 51711928935 | $65.47 | Shop at ECS Tuning | |||||
| 05 | Ozdobná mřížka vstup vzduchu pravý | 1 | 51711928936 | $65.47 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Svorka | 8 | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
| 06 | Rozpěrný nýt | 8 | 51711928946 | $0.45 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iLS Ozdobná mřížka?
- This technical diagram illustrates the Ozdobná mřížka within the Výbava vozidla group for the 7 Series E32 750iLS produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Ozdobná mřížka střední (Part #51138141560).
- Which models use the hardware listed in this Ozdobná mřížka?
- The hardware and components featured in the Ozdobná mřížka are specific to the 7 Series E32 750iLS produced during 1994. These technical specifications ensure that parts like the Ozdobná mřížka střední (51138141560) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ozdobná mřížka assembly?
- Each item in the Ozdobná mřížka corresponds to the numbered list below the illustration. For the 7 Series E32 750iLS, you can identify the Ozdobná mřížka střední by locating its position on the schematic, which then links to the official BMW part number 51138141560 for the Výbava vozidla section.
