Ozdobná mřížka for BMW 8 Series E31 850Ci (1994)

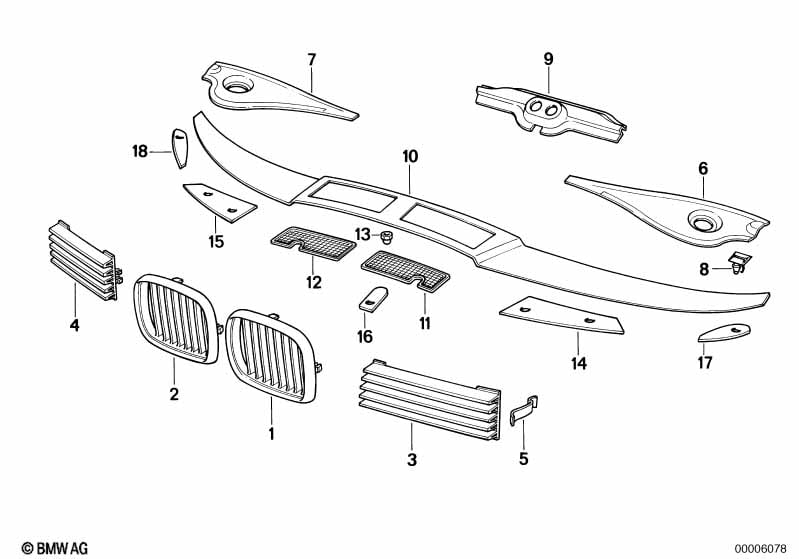

This Ozdobná mřížka technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ozdobná mřížka levá | 1 | 51138124271 | $97.68 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Svorka | 4 | 51131970866 | $0.85 | Shop at ECS Tuning | |||||
| 02 | Ozdobná mřížka pravá | 1 | 51138124272 | $97.68 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Svorka | 4 | 51131970866 | $0.85 | Shop at ECS Tuning | |||||
| 03 | Ozdobná mřížka vstup vzduchu levý | 1 | 51131940907 | $43.24 | Shop at ECS Tuning | |||||
| 04 | Ozdobná mřížka vstup vzduchu pravý | 1 | 51131940908 | $43.24 | Shop at ECS Tuning | |||||
| 05 | Svorka | 8 | 51131970866 | $0.85 | Shop at ECS Tuning | |||||
| 06 | Kryt levý | 1 | 51718124901 | $22.11 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Kryt pravý | 1 | 51718108736 | $22.11 | Shop at ECS Tuning | |||||
| 08 | Svorka | 4 | 51718108613 | $0.29 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Průchodka | 4 | 51138124389 | $1.29 | Shop at ECS Tuning | |||||
| 09 | Kryt | 1 | 51718108747 | $11.98 | Shop at ECS Tuning | |||||
| 10 | Kryt | 1 | 51138118983 | $253.33 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Mřížka vlevo | 1 | 51131970695 | $43.24 | Shop at ECS Tuning | |||||
| 12 | Mřížka vpravo | 1 | 51131970696 | $43.24 | Shop at ECS Tuning | |||||
| 13 | Uzavřená matice | M4 | 7 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Uzavřená matice | 7 | 51112232040 | $0.42 | Shop at ECS Tuning | |||||
| 14 | Podložka levá | 1 | 51138118987 | $4.00 | Shop at ECS Tuning | |||||
| 15 | Podložka pravá | 1 | 51138118988 | $4.00 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Podložka | 1 | 51138118986 | $2.43 | Shop at ECS Tuning | |||||
| 17 | Podložka levá | 1 | 51138118989 | $2.85 | UKONČENO | Shop at ECS Tuning | ||||
| 18 | Podložka pravá | 1 | 51138118990 | $2.85 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Ozdobná mřížka?
- This technical diagram illustrates the Ozdobná mřížka within the Výbava vozidla group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Ozdobná mřížka levá (Part #51138124271).
- Which models use the hardware listed in this Ozdobná mřížka?
- The hardware and components featured in the Ozdobná mřížka are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Ozdobná mřížka levá (51138124271) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ozdobná mřížka assembly?
- Each item in the Ozdobná mřížka corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Ozdobná mřížka levá by locating its position on the schematic, which then links to the official BMW part number 51138124271 for the Výbava vozidla section.
