Lišta práh dveří / podběh kola for BMW 3 Series E30 325ix (1992)

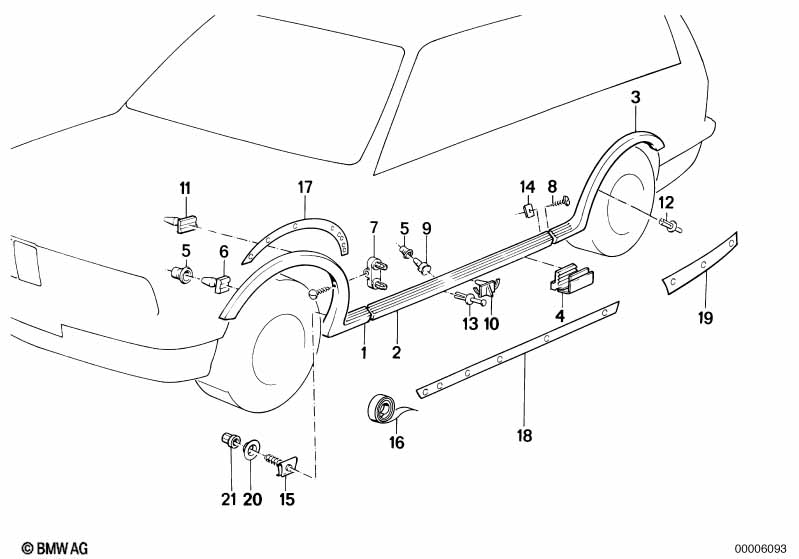

This Lišta práh dveří / podběh kola technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clona přední levá | 1 | 51711962077 | $264.15 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Clona přední pravá | 1 | 51711962078 | $264.15 | Shop at ECS Tuning | |||||
| 02 | Lišta prahu dveří levá | 1 | 51711961755 | $514.78 | Shop at ECS Tuning | |||||
| 02 | Prahová lišta vpravo | 1 | 51711961756 | $514.78 | Shop at ECS Tuning | |||||
| 03 | Clona zadní levá | 1 | 51711962079 | $237.05 | Shop at ECS Tuning | |||||
| 03 | Clona zadní pravá | 1 | 51711962080 | $237.05 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Upínací díl | X | 51711938940 | $1.56 | Shop at ECS Tuning | |||||
| 05 | Průchodka zelená | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Zátka | WEISS | X | 51711929320 | $1.27 | Shop at ECS Tuning | ||||
| 07 | Svorka | 4 | 51711934949 | $1.30 | Shop at ECS Tuning | |||||
| 08 | Šroub na plech | ST4,8X19 | X | 07119904714 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Zátka | X | 51711927439 | $0.58 | Shop at ECS Tuning | |||||
| 10 | Svorka | 8 | 51711959929 | $0.85 | Shop at ECS Tuning | |||||
| 11 | Zátka | WEISS | 4 | 51711929320 | $1.27 | Shop at ECS Tuning | ||||
| 12 | Nýt | X | 51111942789 | $0.90 | Shop at ECS Tuning | |||||
| 13 | Nýt | X | 51711936929 | $0.37 | Shop at ECS Tuning | |||||
| 14 | Matice na plech | ST 4,8-6-ZNS3 | 2 | 07129904225 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Svorka | 2 | 51711922599 | $0.42 | Shop at ECS Tuning | |||||
| 16 | Lepicí páska | 3000MM | 1 | 51711976999 | $28.02 | Shop at ECS Tuning | ||||
| 17 | Šablona přední levá | 1 | 09/1987 | 51718103195 | $14.52 | UKONČENO | Shop at ECS Tuning | |||
| 17 | Šablona přední pravá | 1 | 09/1987 | 51718103196 | $11.23 | UKONČENO | Shop at ECS Tuning | |||
| 18 | Šablona levá | 1 | 09/1987 | 51718100357 | $10.25 | UKONČENO | Shop at ECS Tuning | |||
| 18 | Šablona pravá | 1 | 09/1987 | 51718100358 | $10.94 | UKONČENO | Shop at ECS Tuning | |||
| 19 | Šablona přední levá | 1 | 09/1987 | 51718100355 | $20.86 | Shop at ECS Tuning | ||||
| 19 | Šablona přední pravá | 1 | 09/1987 | 51718100356 | $20.86 | UKONČENO | Shop at ECS Tuning | |||
| 20 | Plastová matice čep s hrubým závitem | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 21 | Upínací šroub | 2 | 51711933719 | $1.94 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
