Podložka pro SPZ for BMW 3 Series E30 325ix (1992)

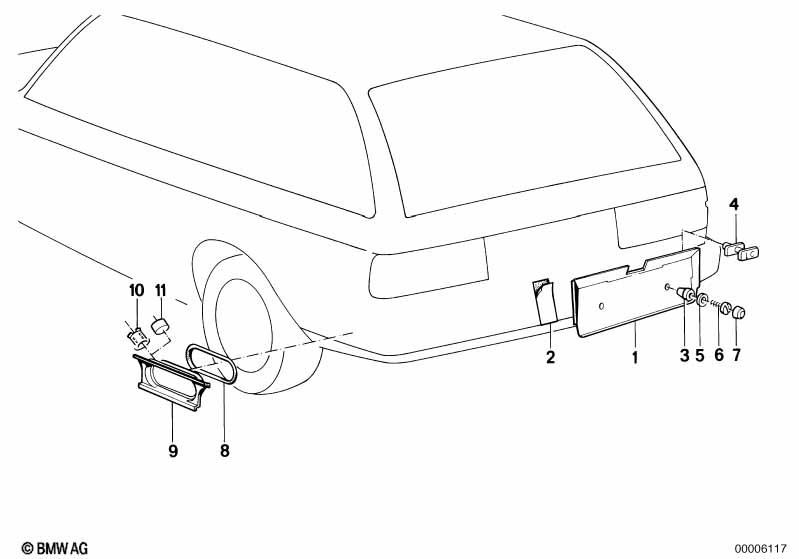

This Podložka pro SPZ technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clona | 1 | 51131947129 | $42.43 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Lepicí páska | 2 | 51131920090 | $1.43 | Shop at ECS Tuning | |||||
| 03 | Zástrčná matice | 2 | 51131961243 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Rozpěrný nýt | 3 | 51131947310 | Shop at ECS Tuning | ||||||
| 05 | Okno | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 06 | Samořezný šroub s čočkovou hlavou | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Odnímatelný kryt | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 07 | Odnímatelný kryt | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 07 | Odnímatelný kryt | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Těsnicí kroužek | 2 | 64221922280 | $3.96 | Shop at ECS Tuning | |||||
| 09 | Clona zadní ventilace | 2 | 64221922739 | $23.08 | Shop at ECS Tuning | |||||
| 10 | Kabelová svorka | 2 | 54121922721 | $0.43 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Víčko | 4 | 64221922652 | $0.59 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Podložka pro SPZ?
- This technical diagram illustrates the Podložka pro SPZ within the Výbava vozidla group for the 3 Series E30 325ix produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Clona (Part #51131947129).
- Which models use the hardware listed in this Podložka pro SPZ?
- The hardware and components featured in the Podložka pro SPZ are specific to the 3 Series E30 325ix produced during 1992. These technical specifications ensure that parts like the Clona (51131947129) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Podložka pro SPZ assembly?
- Each item in the Podložka pro SPZ corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Clona by locating its position on the schematic, which then links to the official BMW part number 51131947129 for the Výbava vozidla section.
